Comprehensive modification to the GE MASTR II Station 10 Volt regulator card for duplex (repeater) operation
By Kevin Custer - W3KKC

  Print this Page

Concept:
This modification article was out of necessity, as none of the ones I found on the Internet were complete.
This article will ensure your station will not mute when the transmitter is keyed.

Modification:

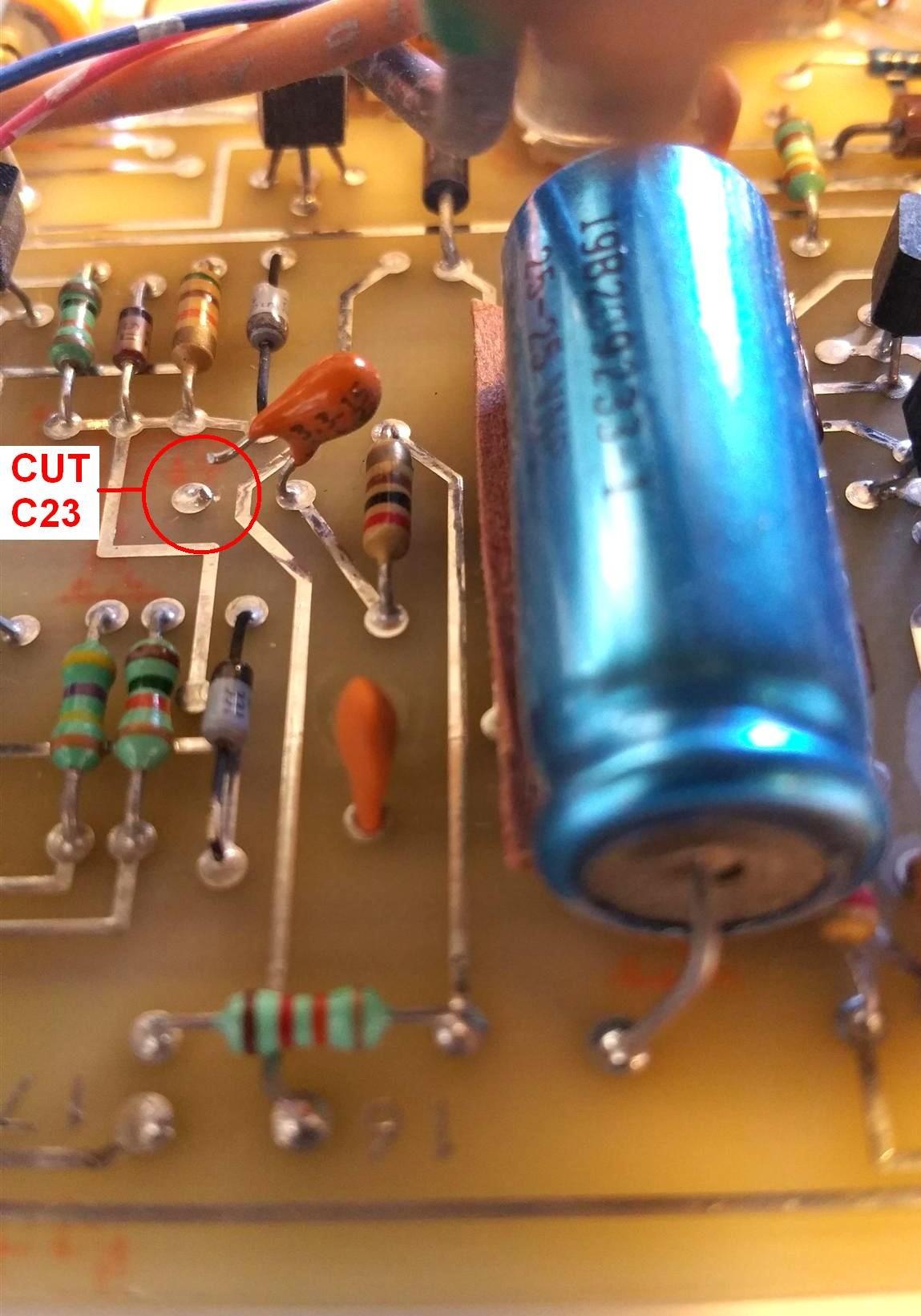

Cut out C23.   Refer to the photo below - click for larger image:

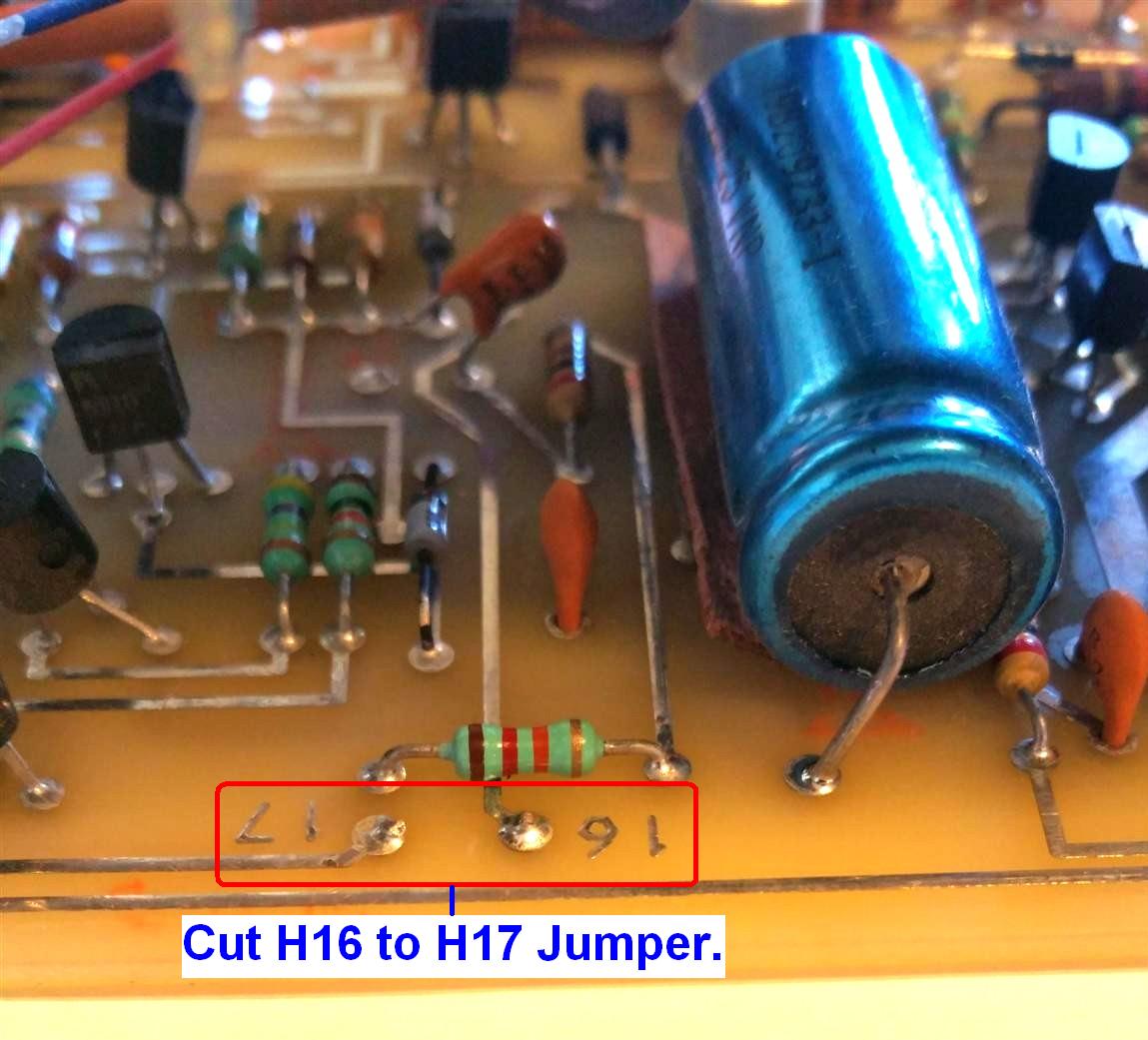

Cut H16 to H17.   Refer to the photo below - click for larger image:

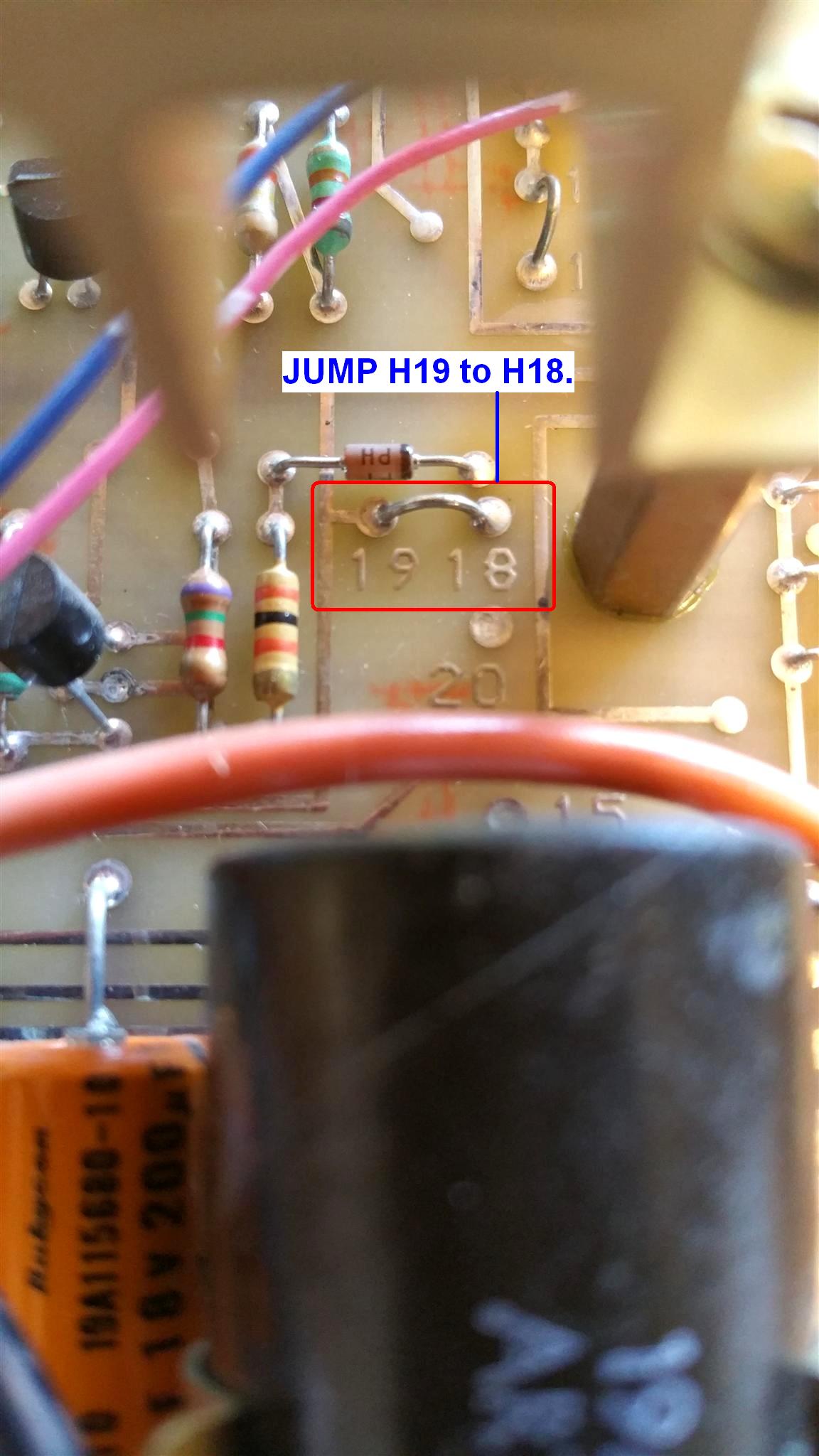

Make sure H19 to H18 is installed.   Refer to the photo below - click for larger image:

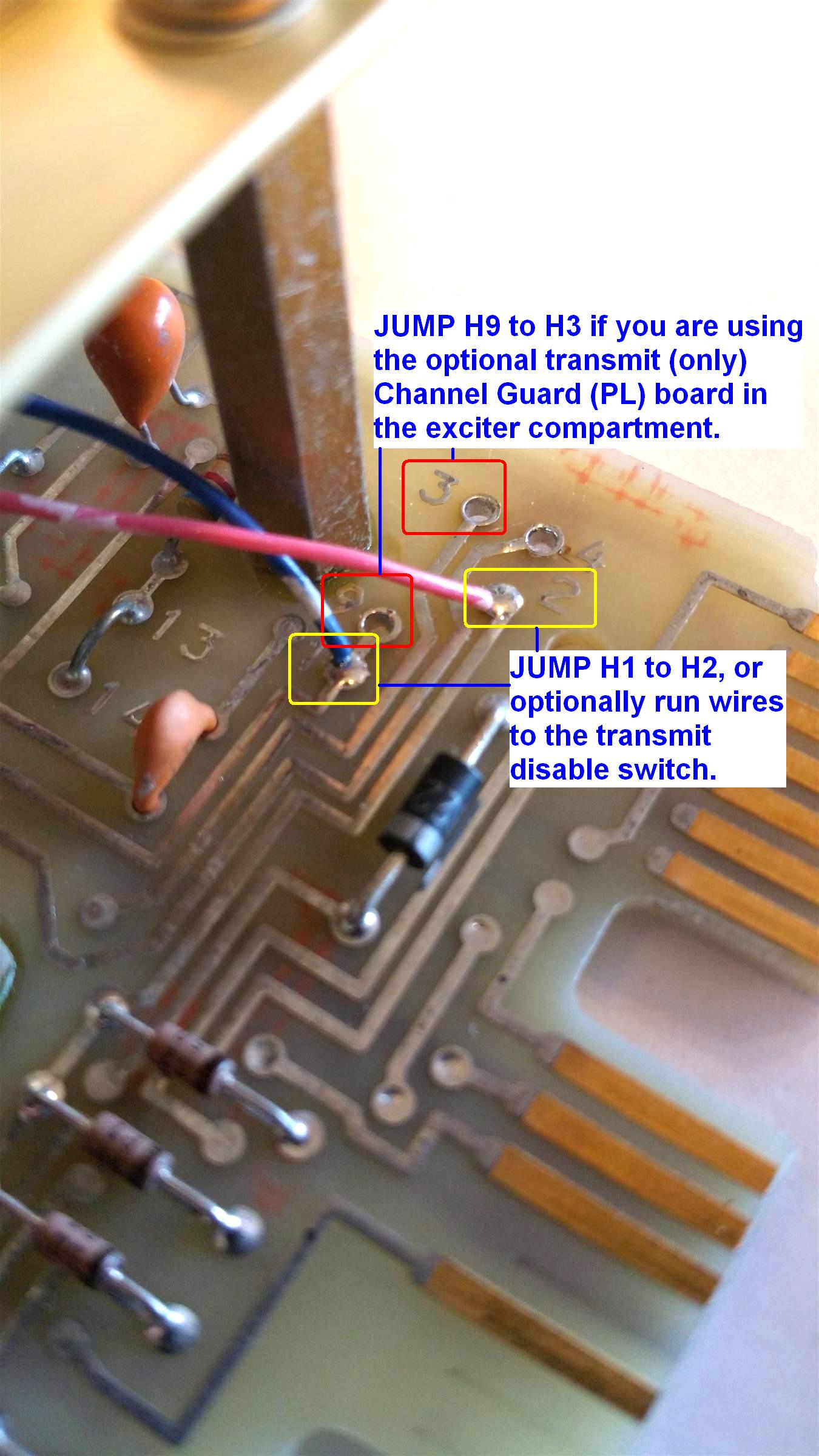

Install H1 to H2 and possibly H9 to H3.   H1 to H2 can be a simple jumper, or you can run wires to a switch on the front panel. (optional).
H9 to H3 needs jumpered if you are using the OEM channel guard encoder.
Refer to the photo below - click for larger image - your browser may give you the option to magnify again (click image yet again).
