Back to Home 		  Repeater Controller Kit
By Charles E. Miller WB6JHQ 		  Print this Page


Overview: My name is Chuck. I have been around repeaters quite a while. I built many repeaters in the Los Angeles area in the 80s and 90s. I designed and wrote the firmware for my own controller because only the Cactus controllers were available then. This controller has evolved from many hours of research and development. It uses the common 6802 Microprocessor, 6821 PIA, 2764 EPROM, and the SSI-202P 5 volt DTMF decoder. These are readily available parts. This circuit design was in use for eight years in the WB6ELR Repeater and the WB6GGL Repeater known as the Mount Baldy Machine.




This is suggested for experienced Repeater/kit Builders.

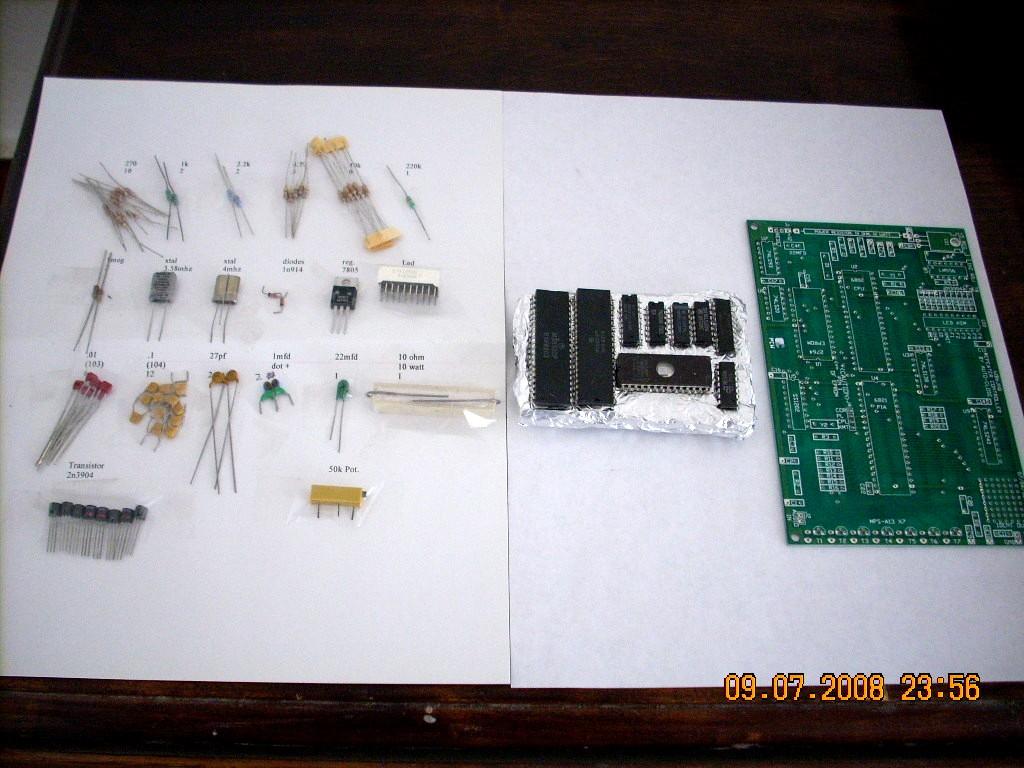

WB6JHQ Repeater Controller Kit

Features and Services Provided:
        ** Touch tone decoder on board.
        ** Remotely adjustable timers.
        ** Remote timer enable/disable.
        ** Remote reset circuit.
        ** Morse Code Identifier.
        ** Remote Base Code with Responses.
        ** Up to 6 repeaters may be connected with optional Hub controllers if using WB6JHQ Ten Channel Audio Mixers.

Boards are no longer available but Chuck has some parts remaining. He can be contacted for support issues at:
his-callsign [ at ] gmail [ dot ] com.


General Controller Files:
1st_Power_Up.doc 28 kB

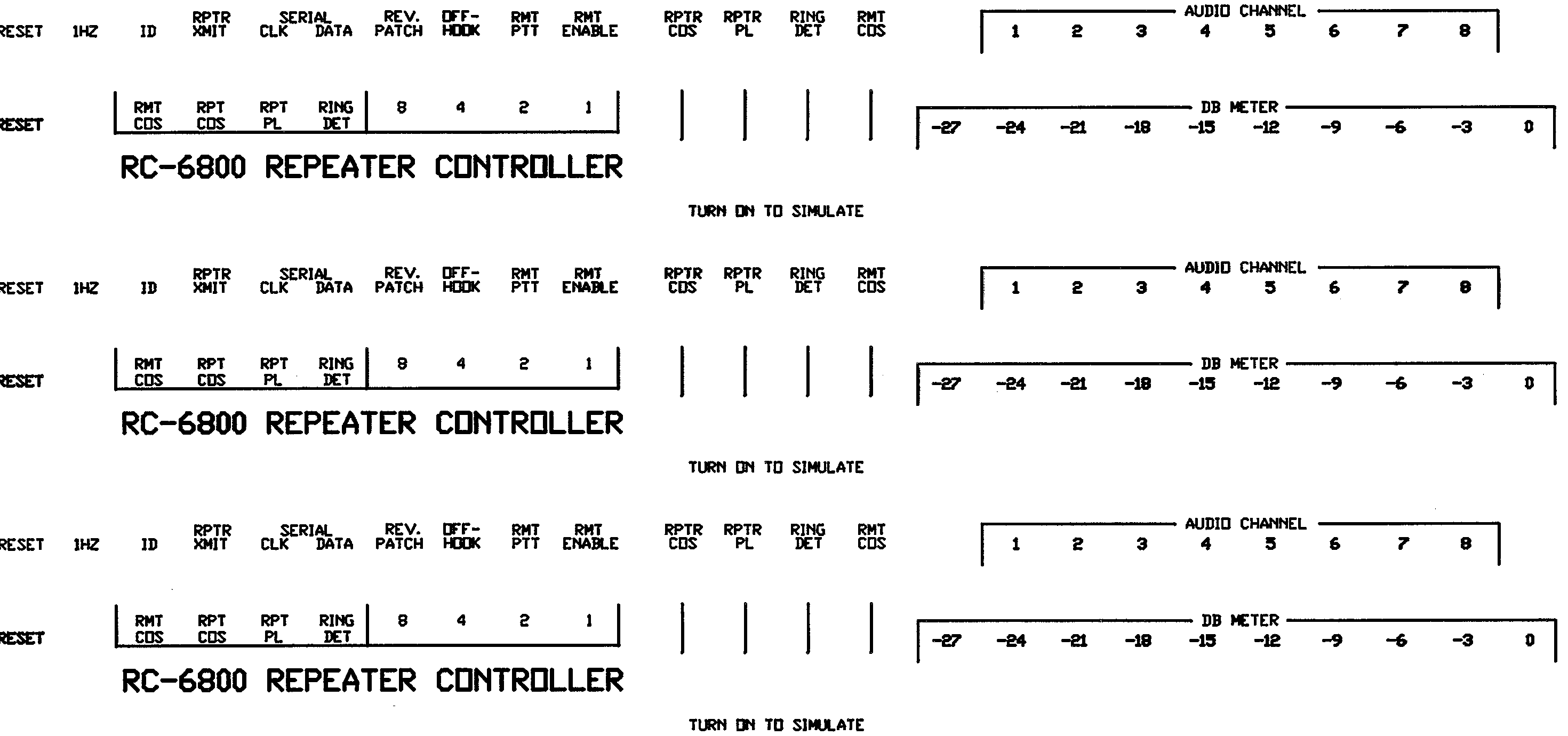

Box_Overlay.bmp 508 kB

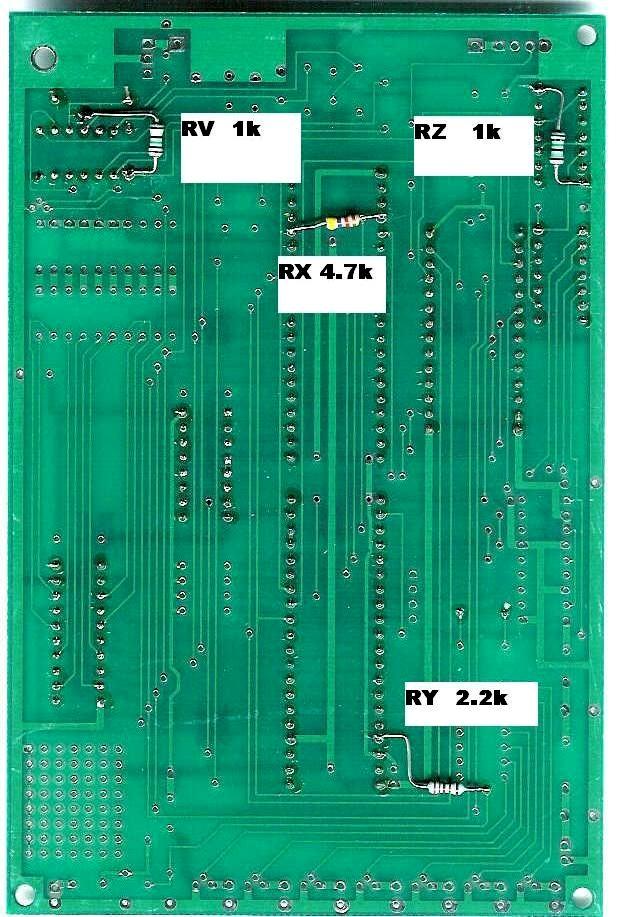

Cntlr_Bot_Res.jpg 117 kB
Cntlr_Brd_Top1.jpg 139 kB

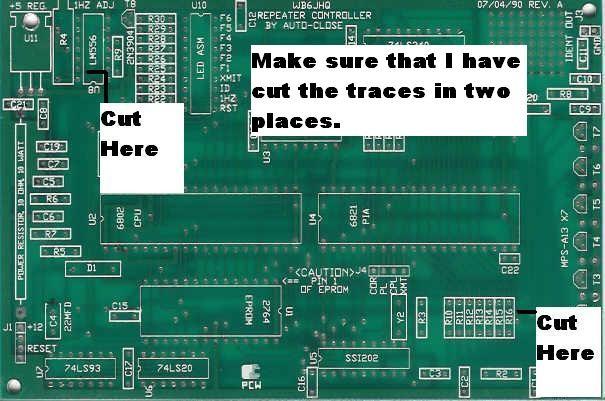

Cntlr_Top_Cuts.jpg 58 kB
Controller_Errata.txt 2.2 kB
Controller_Features.txt 1.3 kB
Controller_Parts.txt 3.0 kB

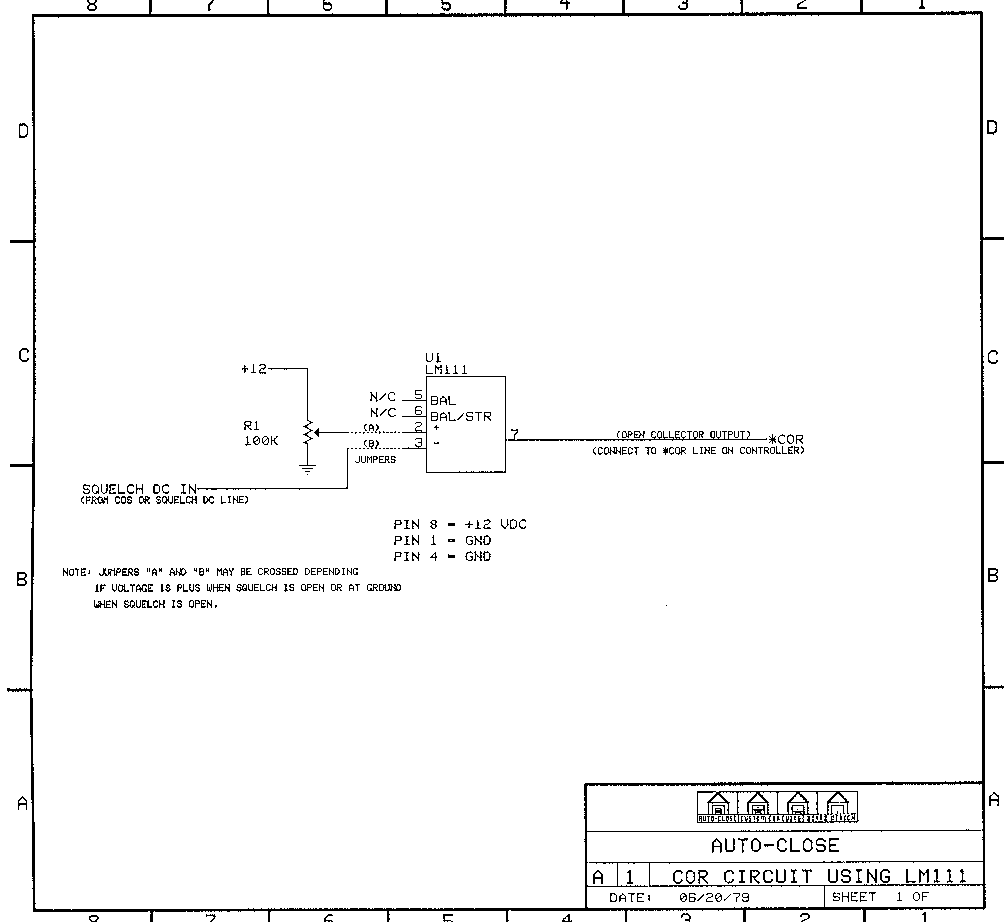

COR_Circuit.bmp 118 kB
Description.txt 6 kB

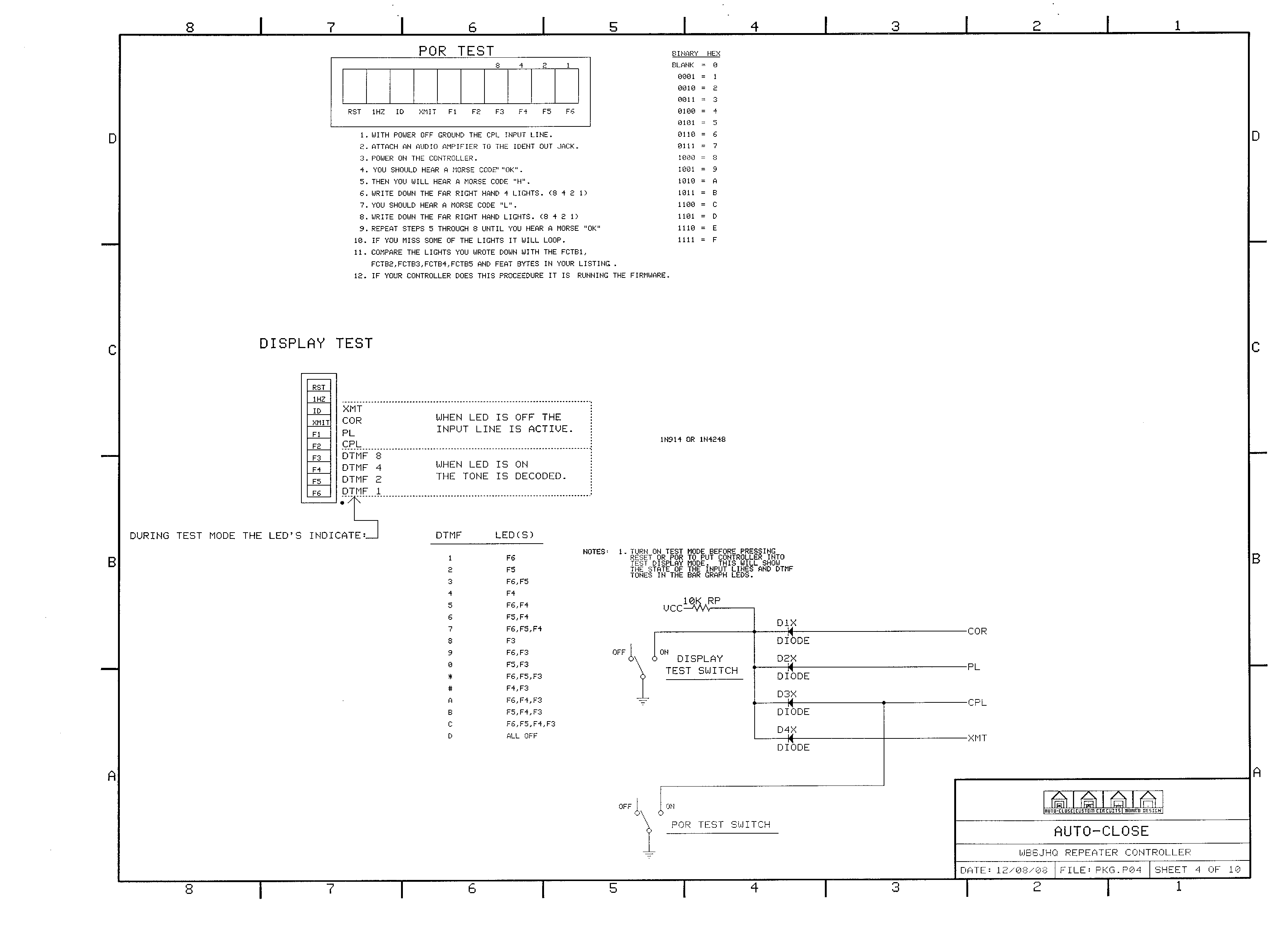

Diagnostic.bmp 1.1 MB
Funct_Descr.txt 21 kB

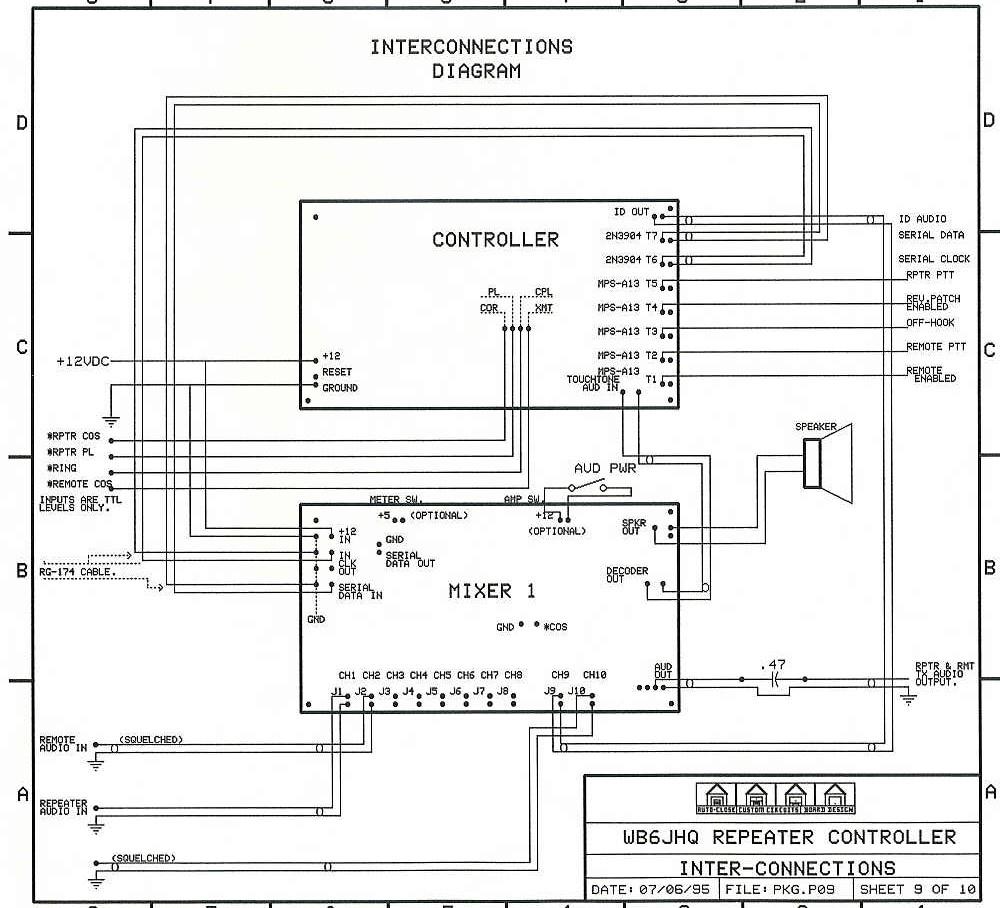

Interconn_w.jpg 135 kB
Interconn_wo.jpg 73 kB

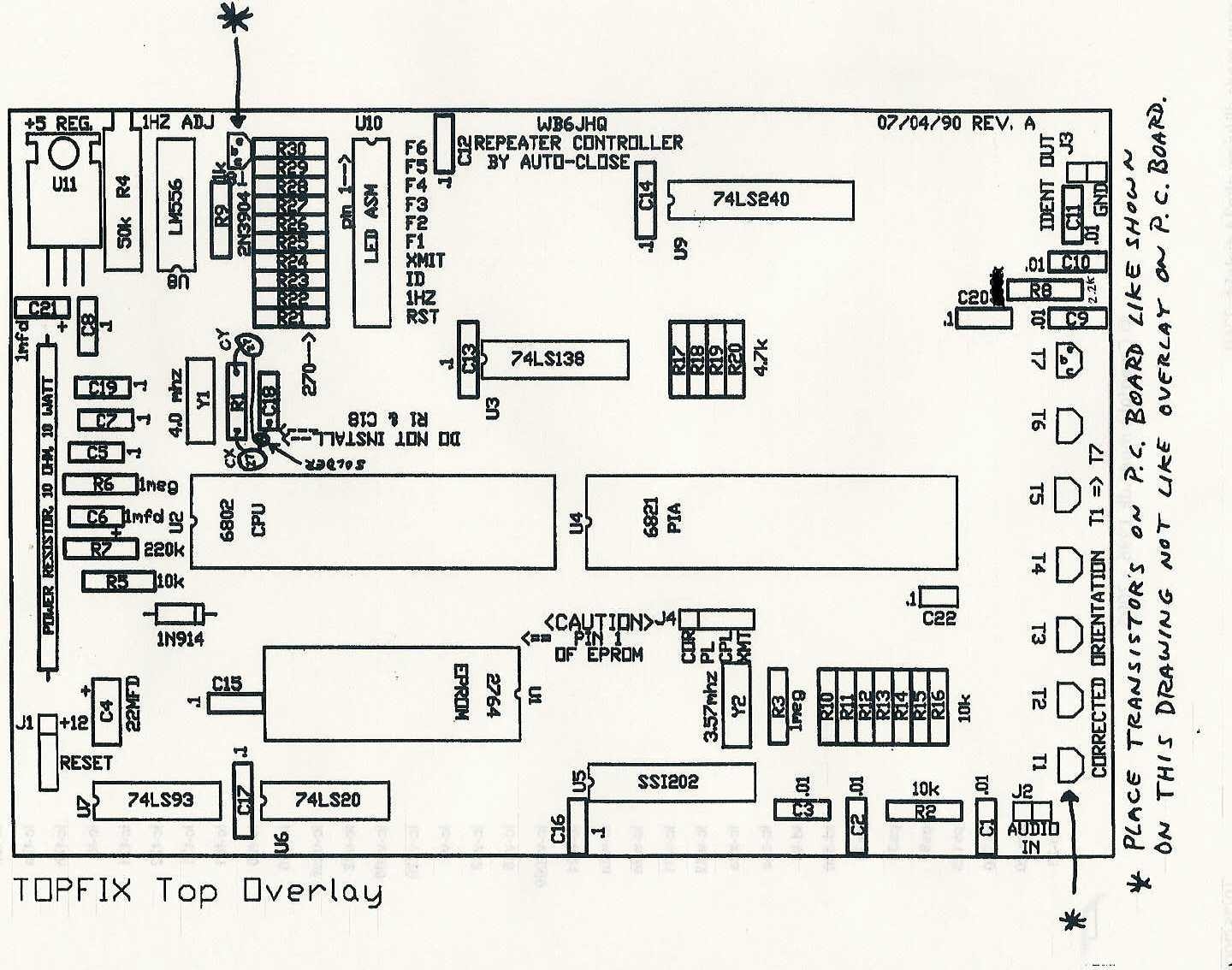

Location_ctrl.jpg 611 kB
RptDoc1.txt 5.6 kB
RptDoc2.txt 16 kB
RptDoc3.txt 23 kB
RptDoc5.txt 2.2 kB
RptDoc6.txt 3.1 kB
RptDoc8.txt 1.0 kB
RptDoc9.txt 5.9 kB
RptDoc10.txt 3.3 kB
RptDoc12.txt 1 kB
RptDoc13.txt 2.1 kB

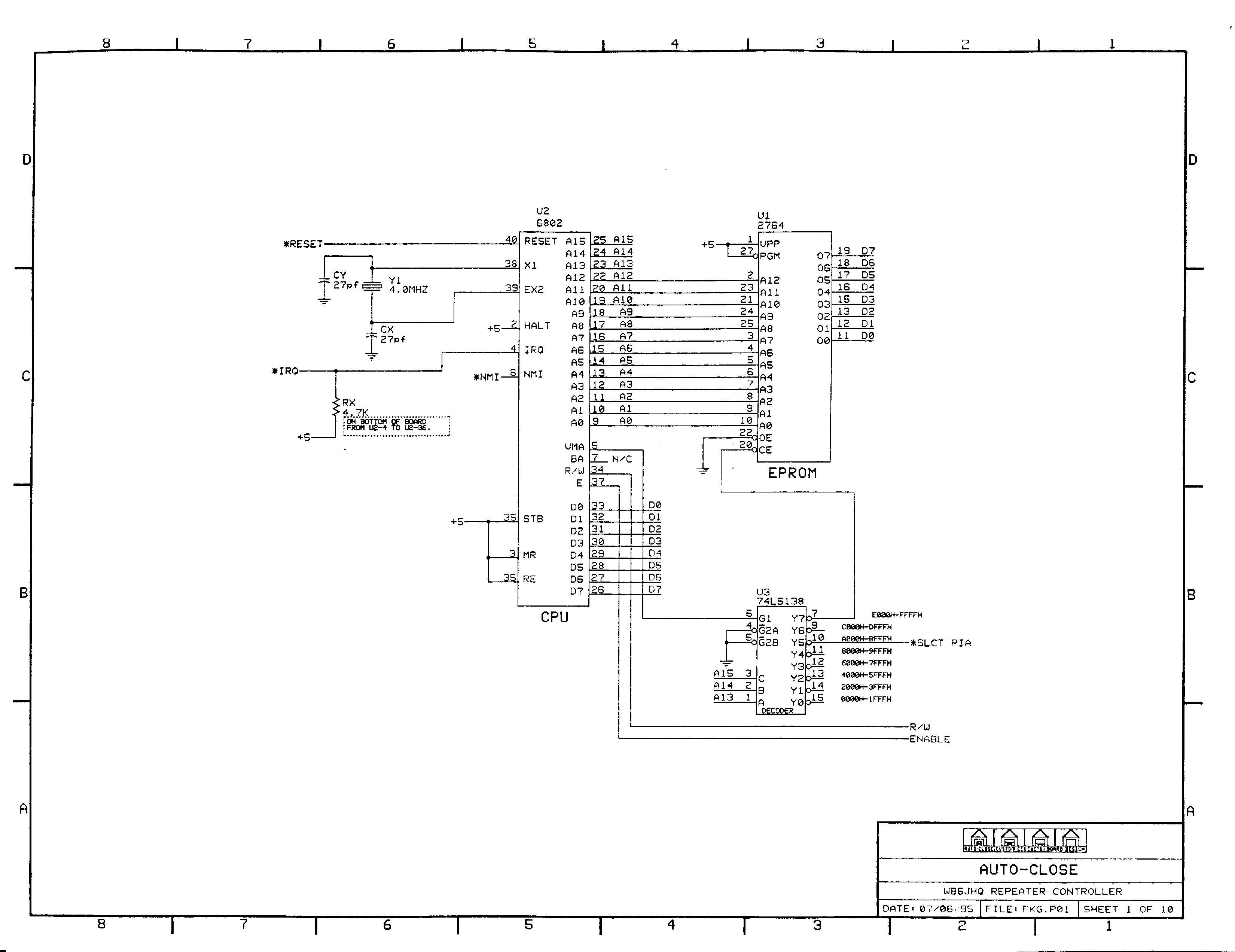

Schematic_ctrl1.jpg 458 kB

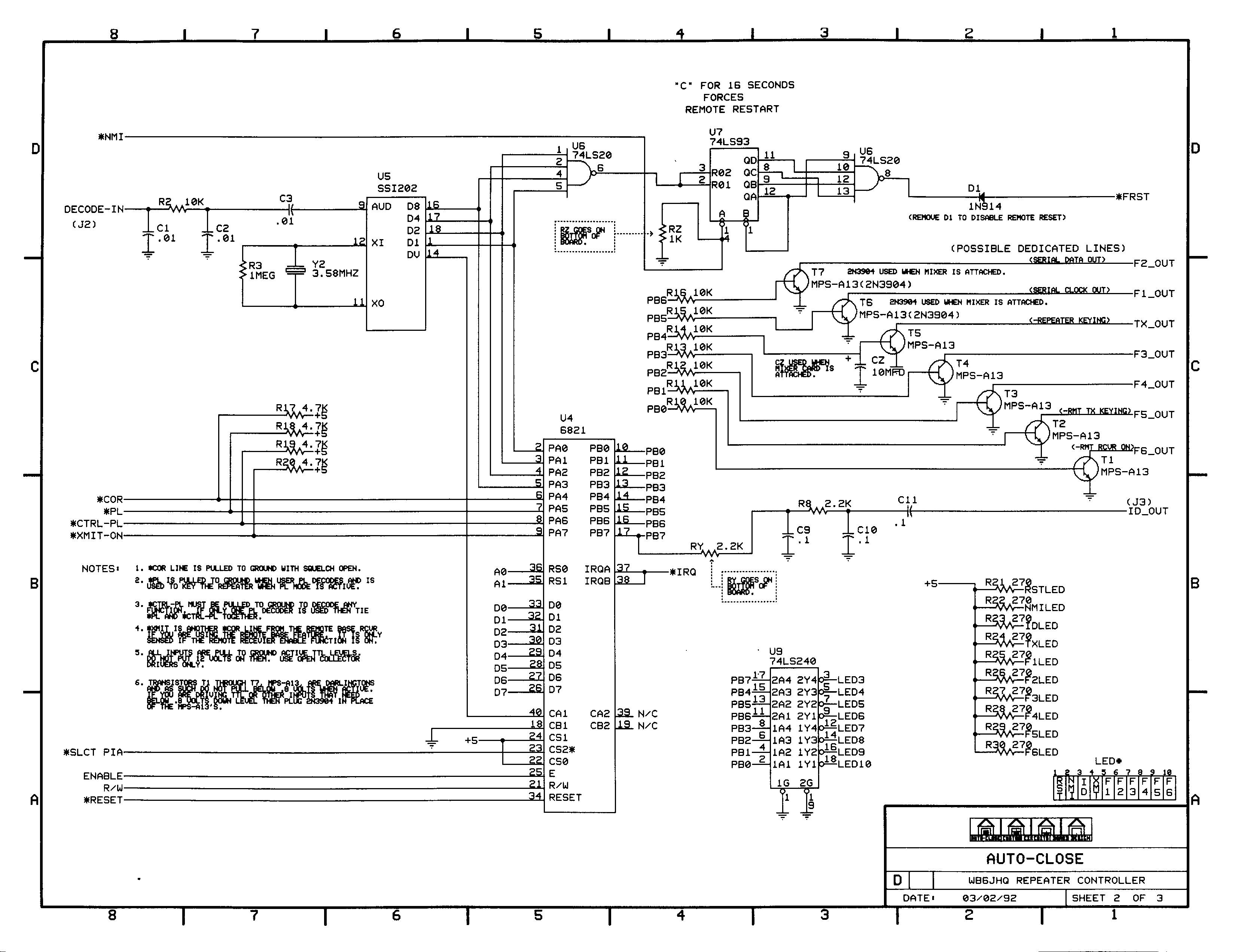

Schematic_ctrl2.jpg 801 kB

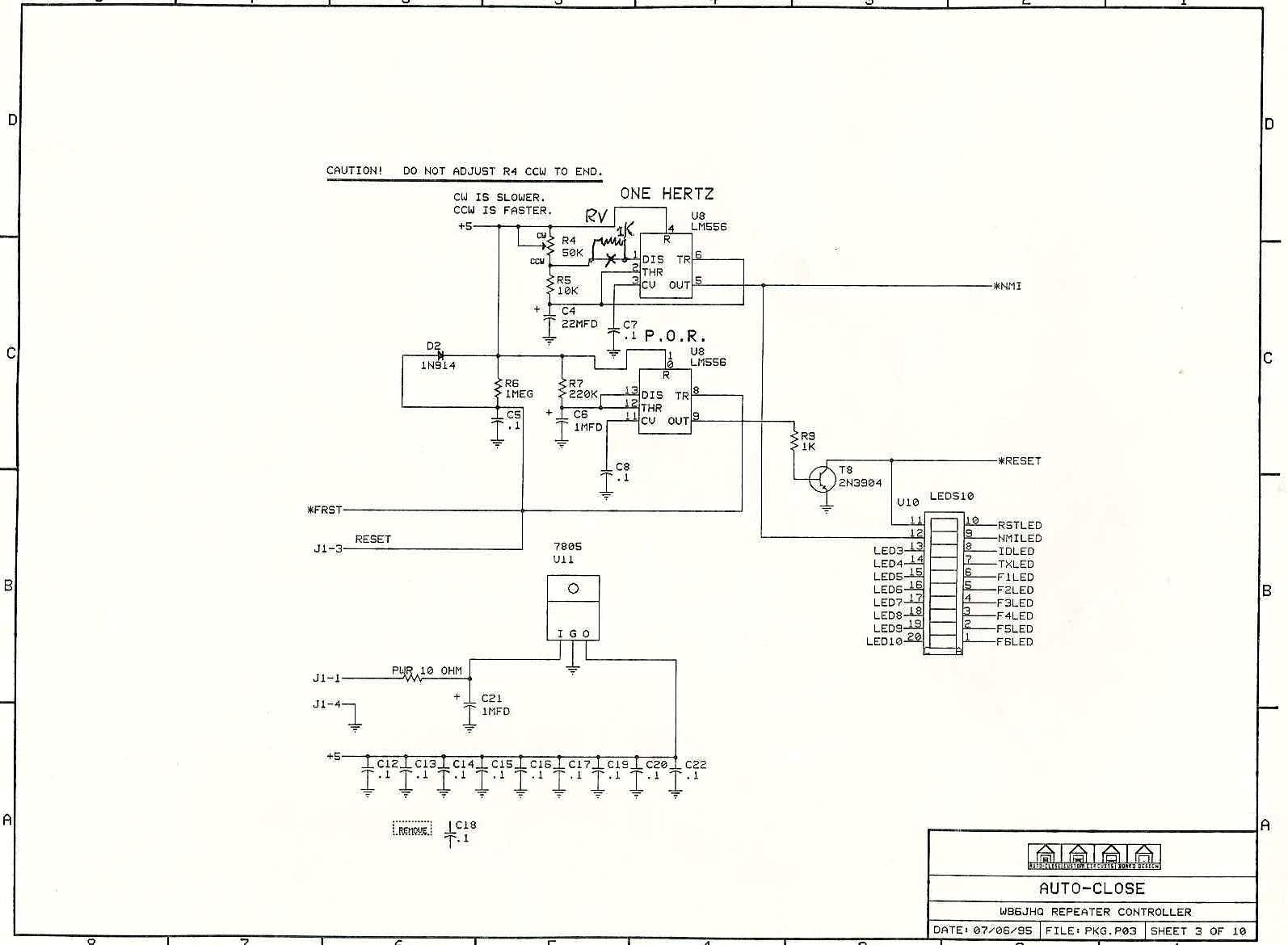

Schematic_ctrl3.jpg 128 kB

Digitalker Files:
Data-Sheet.pdf 3 MB

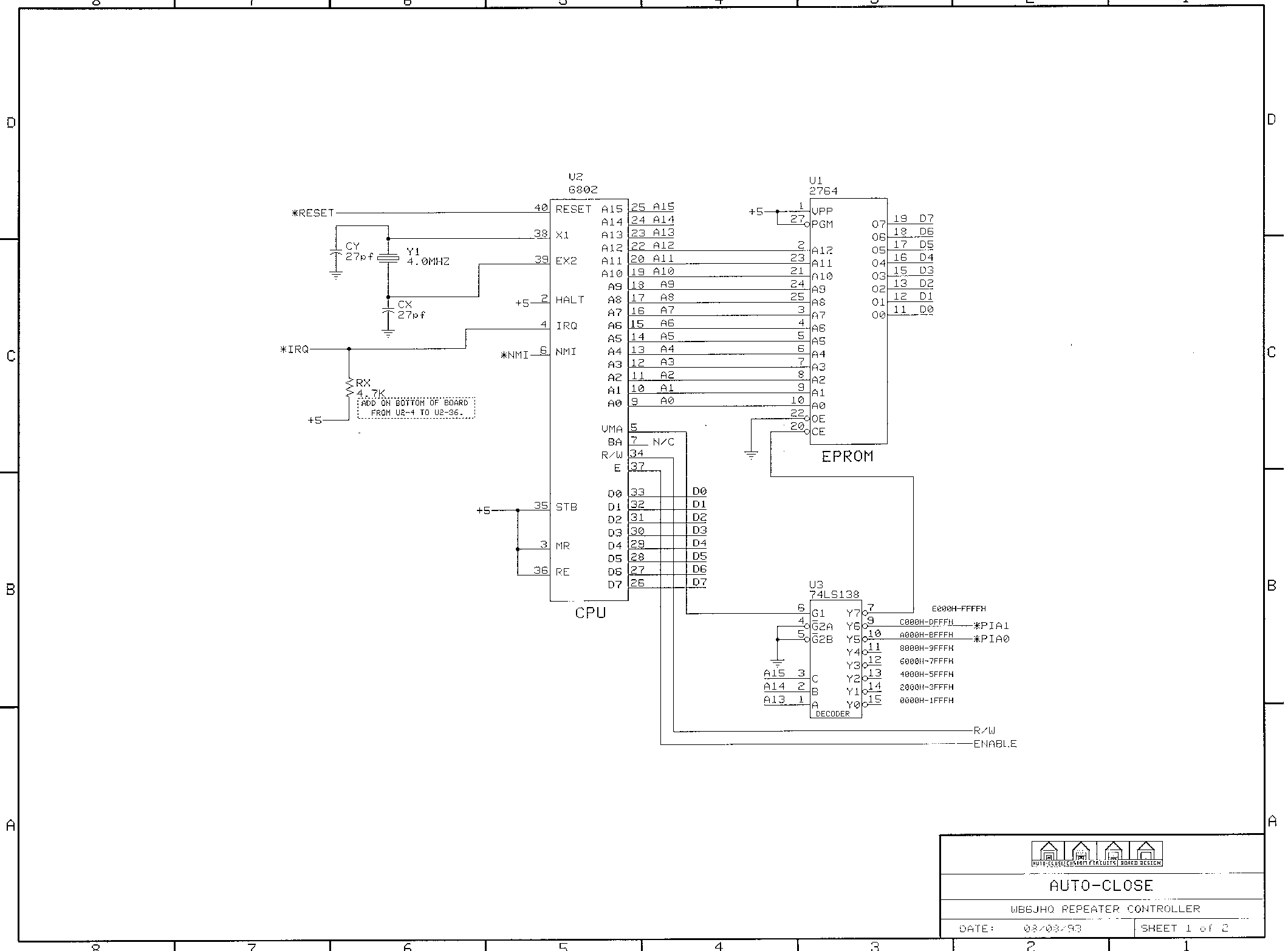

Digitalker0.bmp 420 kB

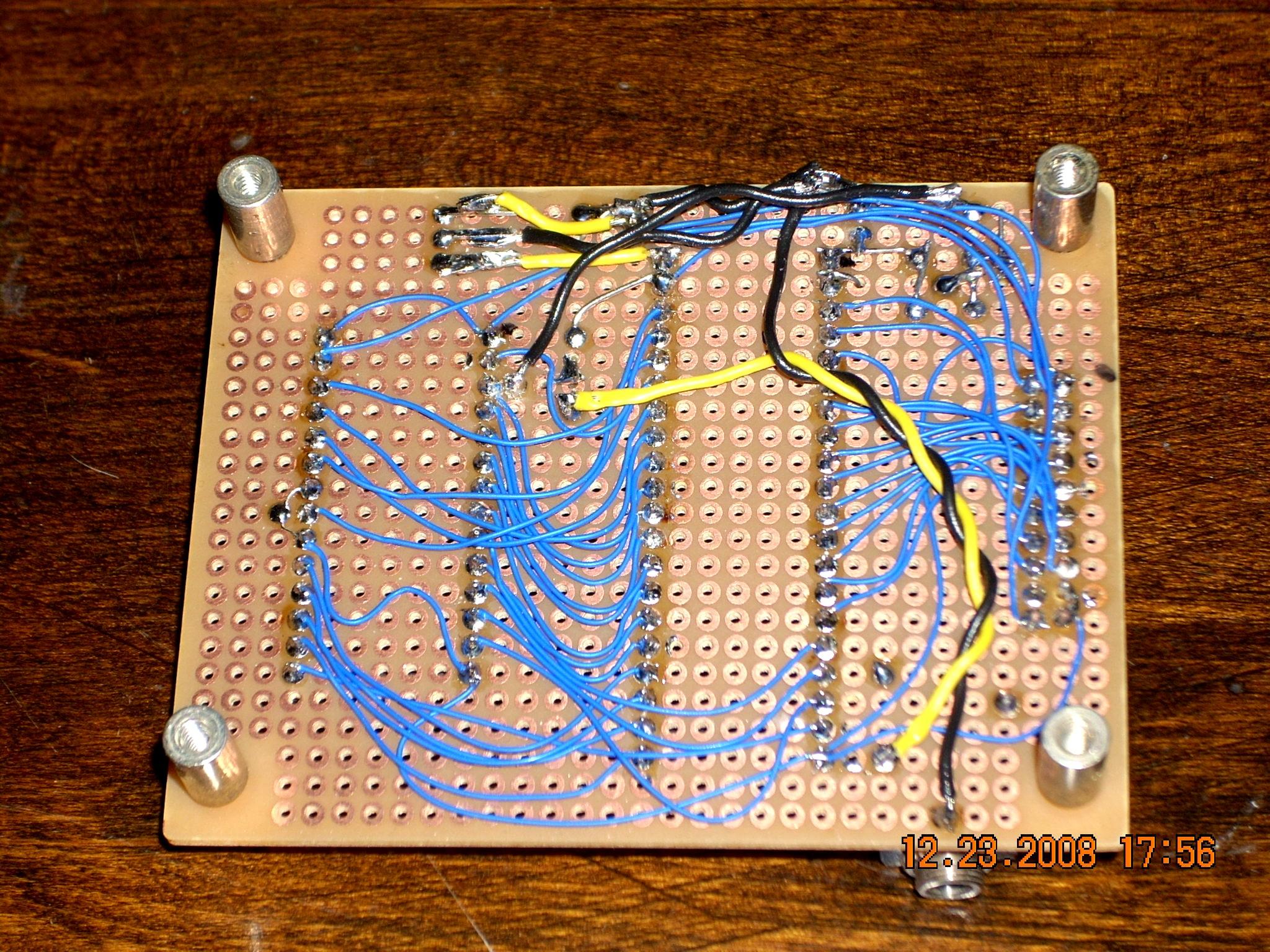

Digitalker3.jpg 644 kB

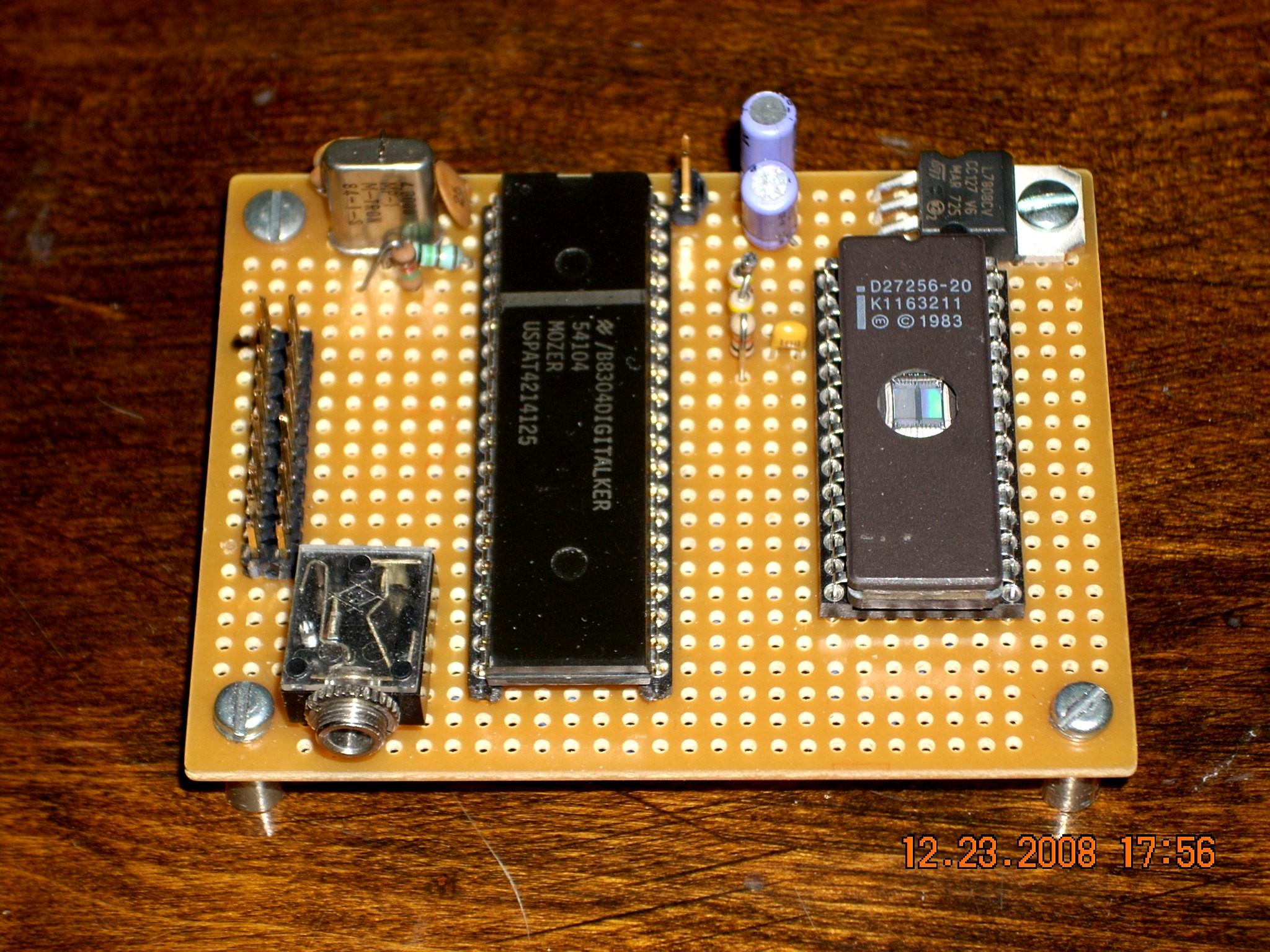

Digitalker4.jpg 446 kB

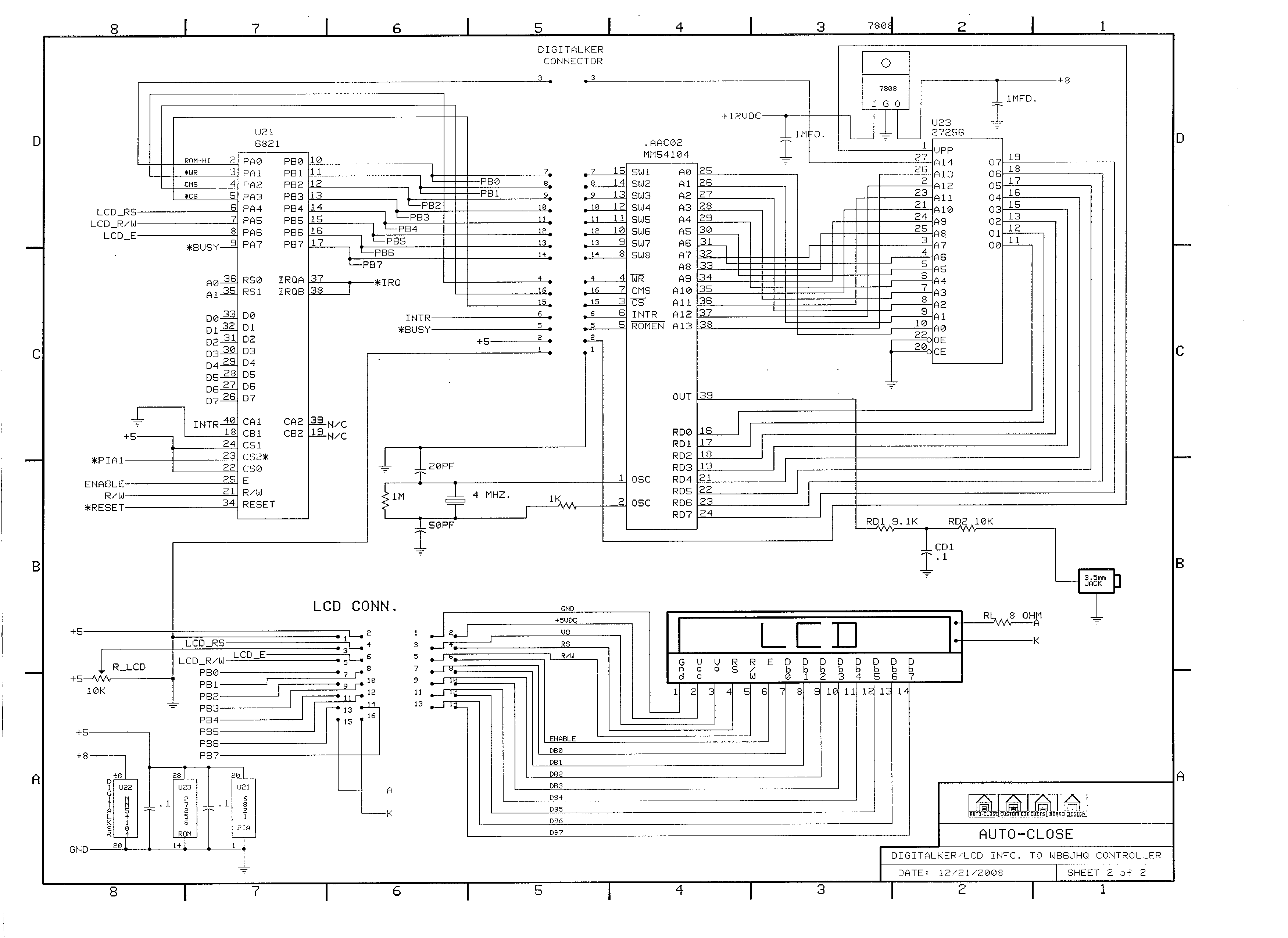

LCD_Digitalker.bmp 1.1 MB Make_Talk.txt 1.7 kB

Controller Firmware Files:
CURR_V2.ASM 111 kB
CURR_V2.tab 140 B
WB6JHQ.ASM 166 kB
WB6JHQ.tab 169 B

Hub Photos:

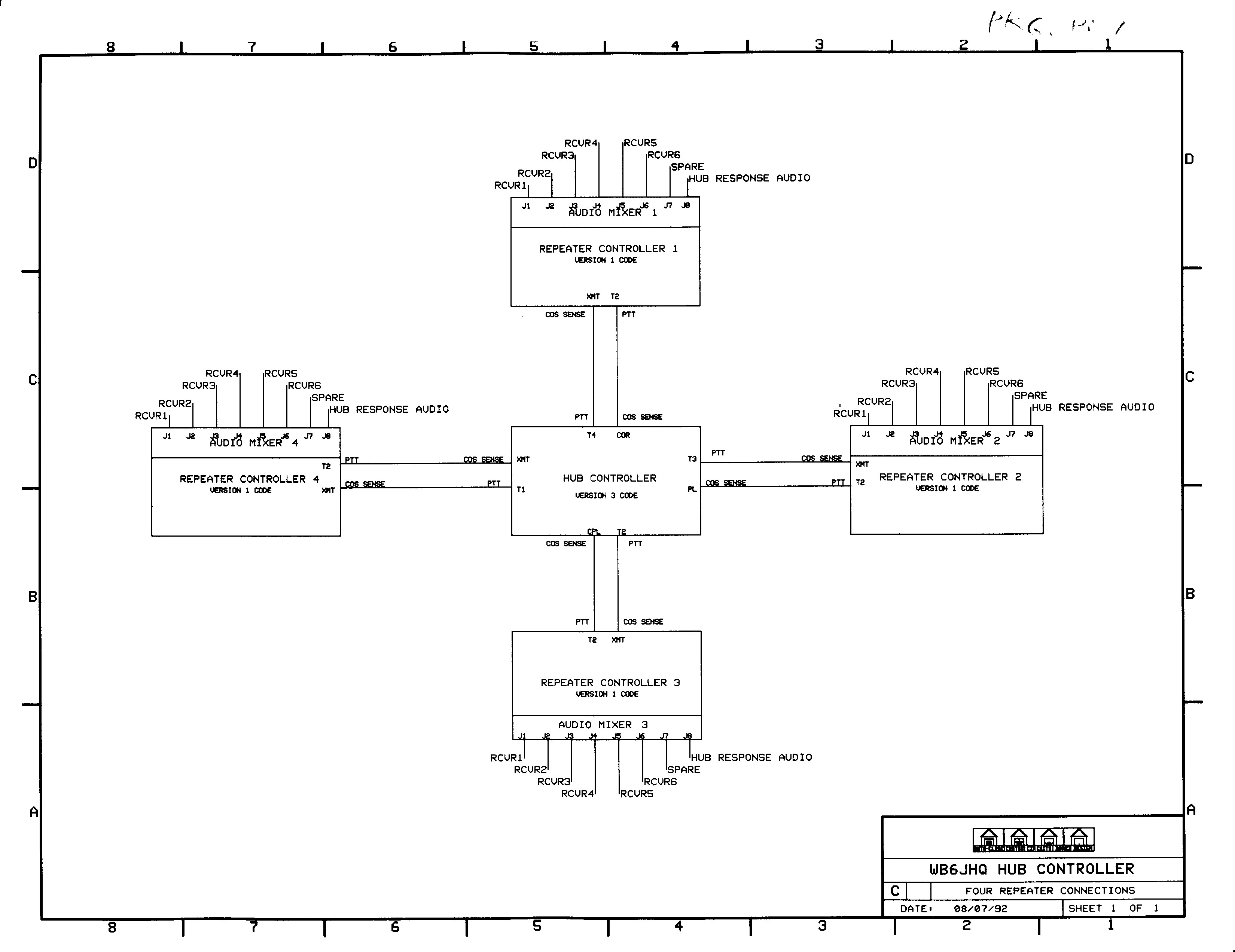

4rpthub.jpg 519 kB
6rpthub1.jpg 465 kB

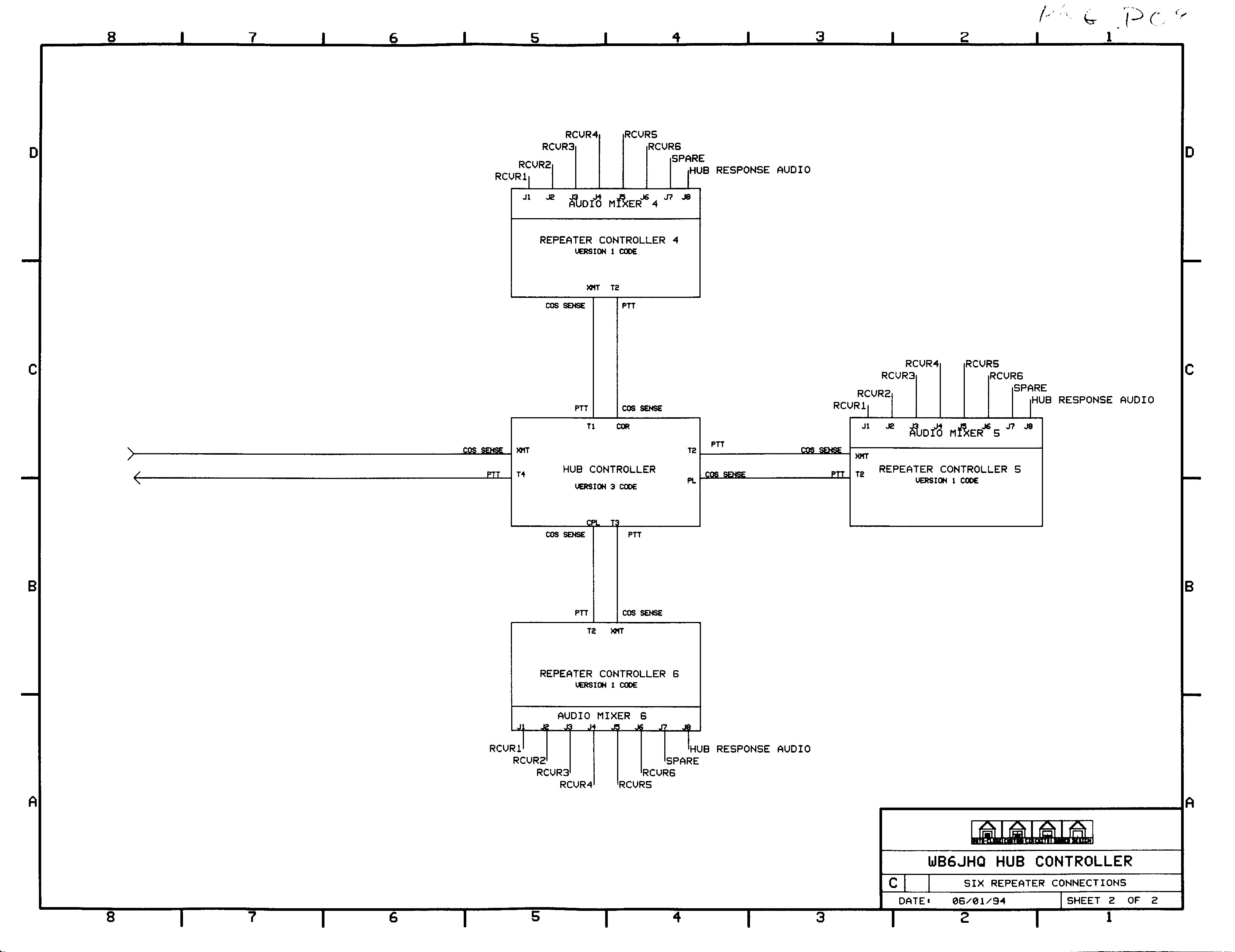

6rpthub2.jpg 483 kB

LCD Display Files:

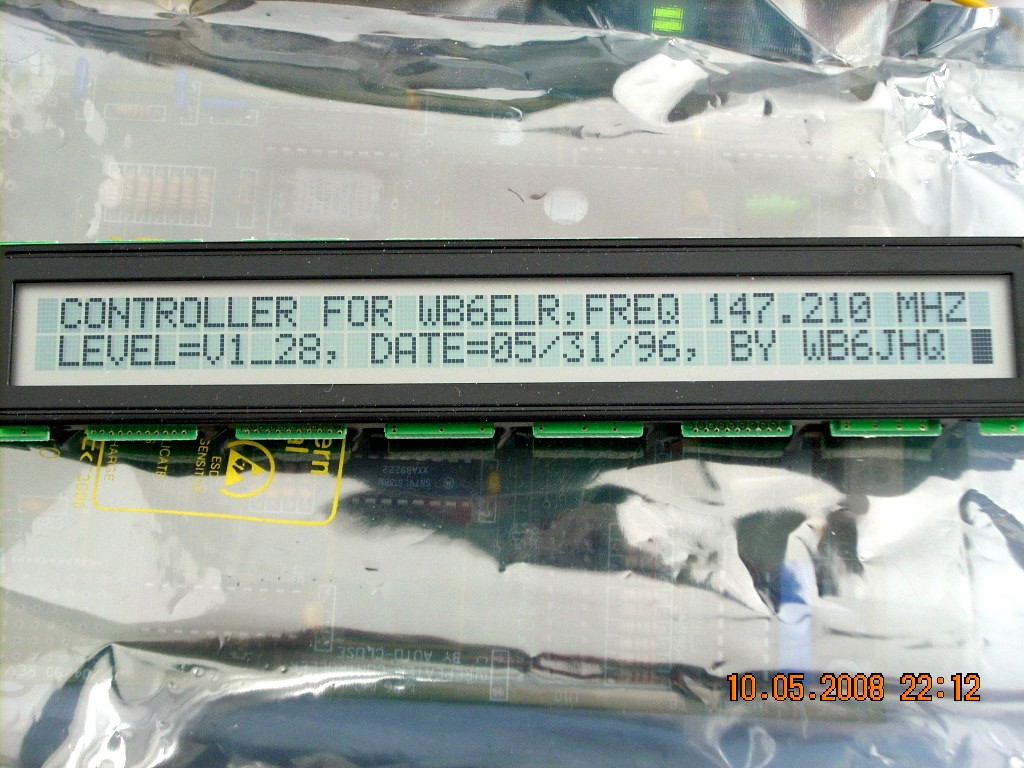

LCD_Picture1.jpg 197 kB

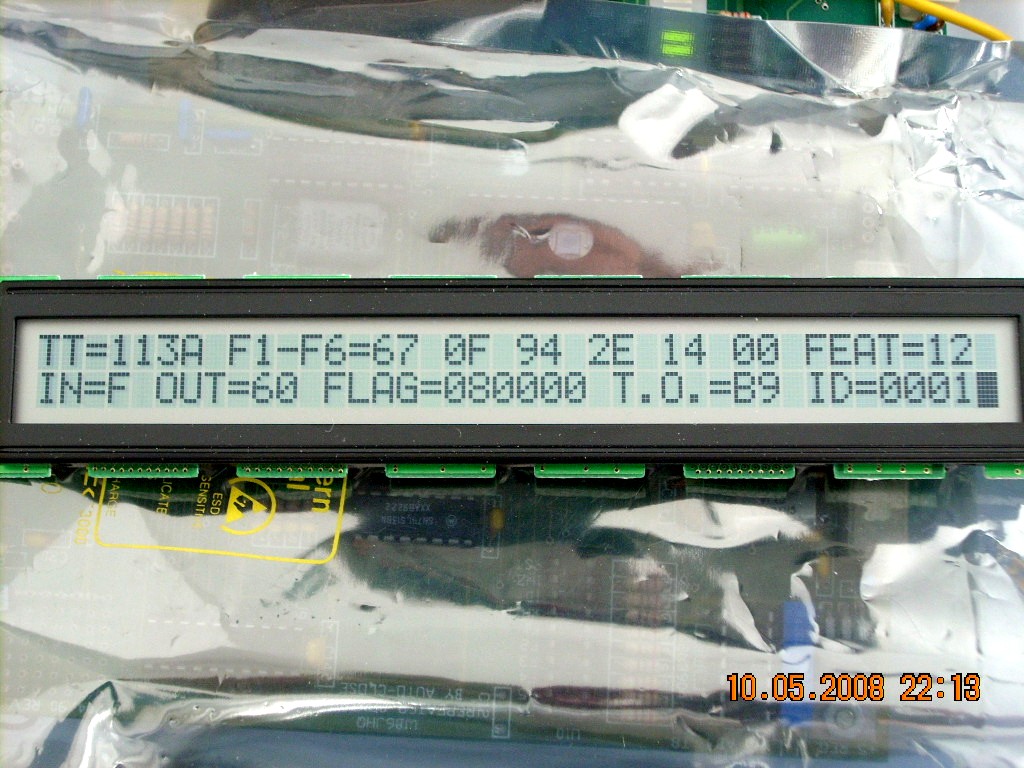

LCD_Picture2.jpg 205 kB

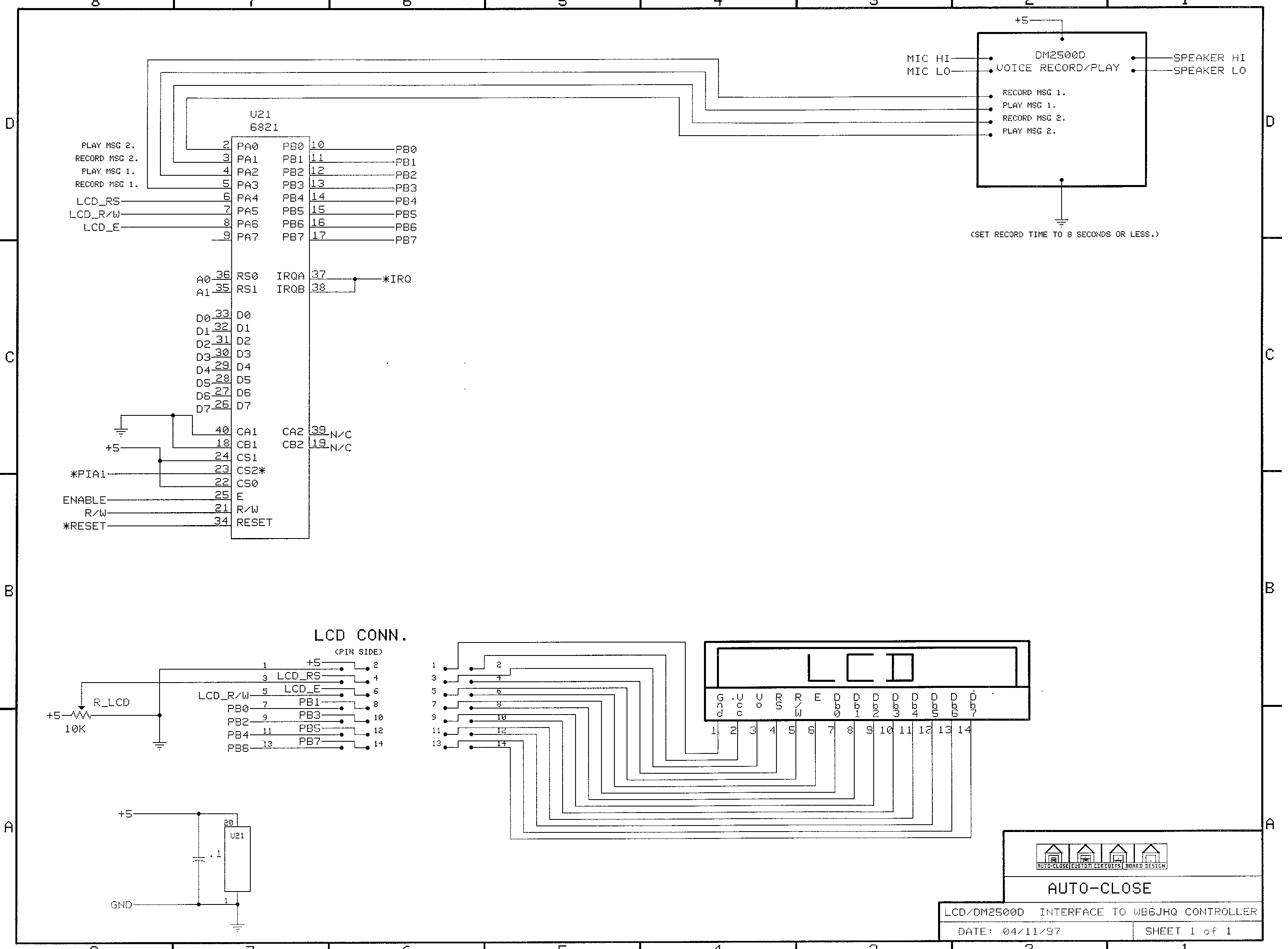

LCD_Schem.bmp 938 kB
Make_LCD.txt 1.6 kB

Mixer Files:

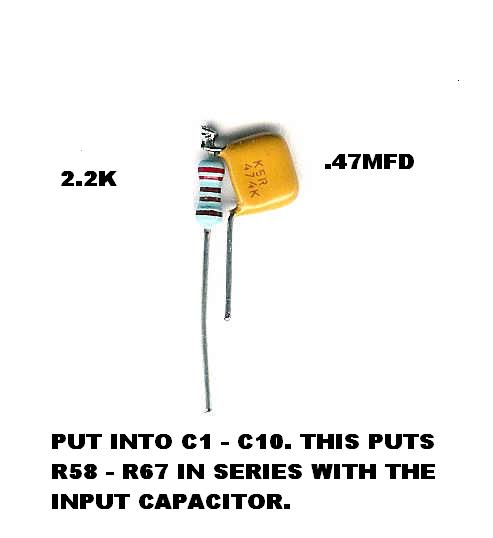

Make_RC.jpg 20 kB

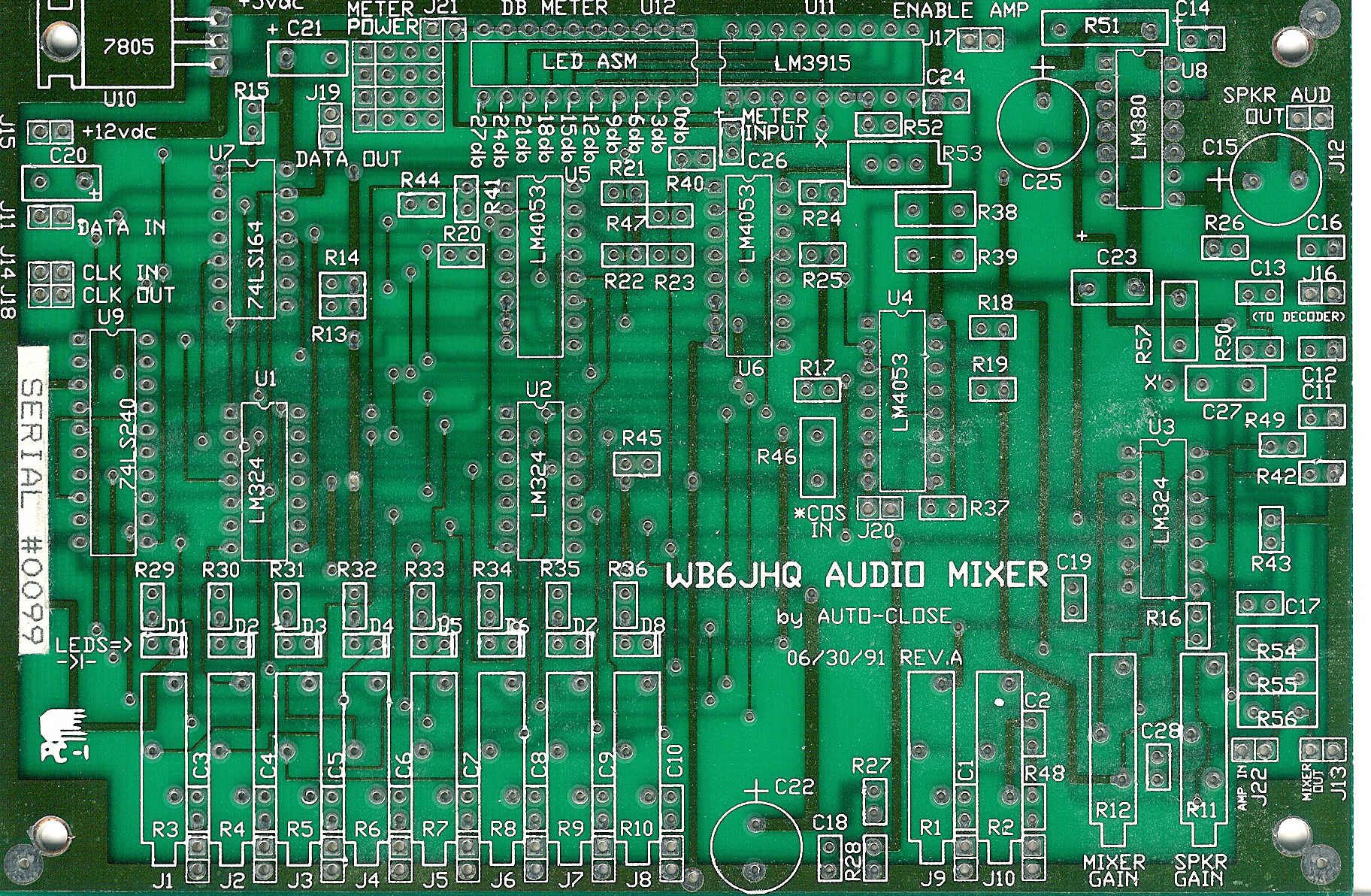

Mixer_Bare.jpg 540 kB

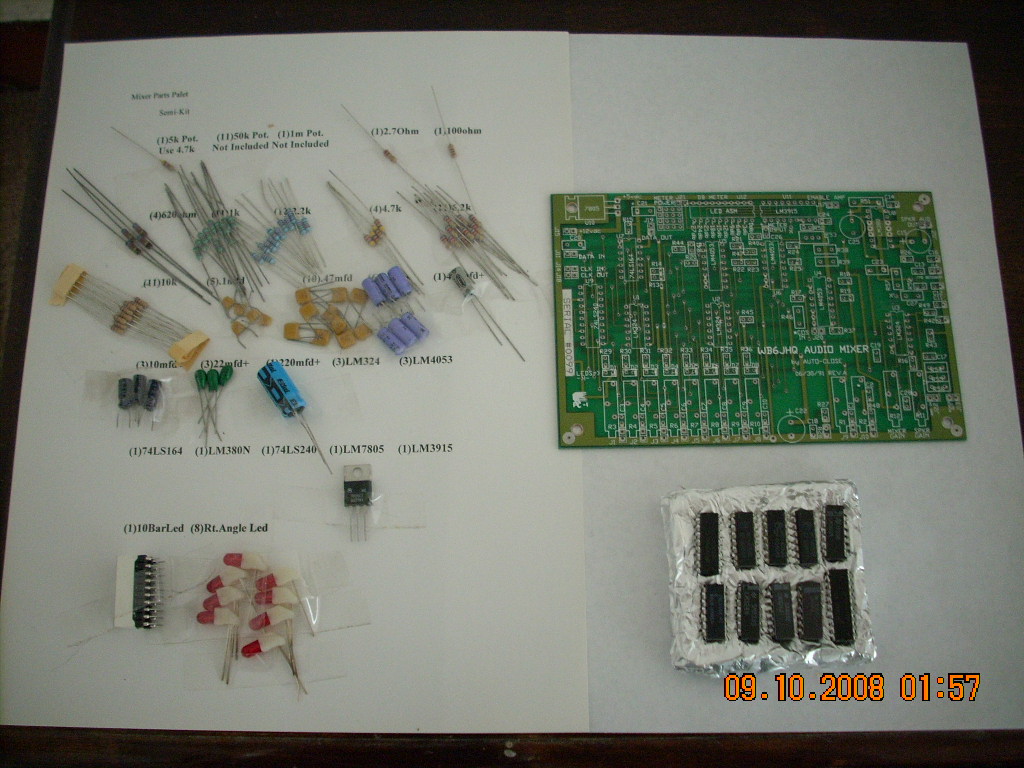

Mixer_Partial_Kit.jpg 242 kB
Mixer_Parts_List.doc 26 kB
Schematic_Mix1.jpg 917 kB

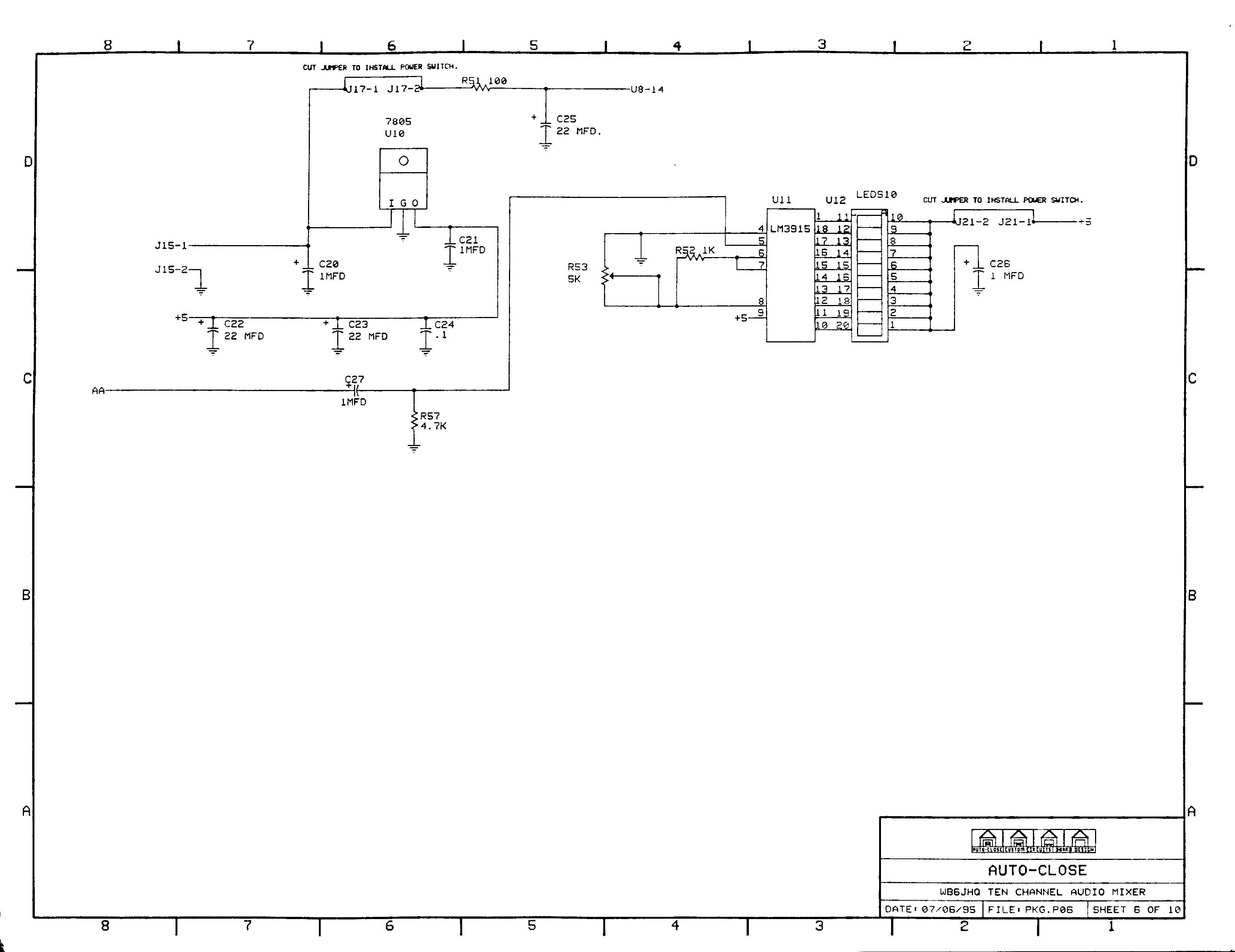

Schematic_Mix2.jpg 367 kB

Selective Call Box Files:
Conn_J1.doc 20 kB
S1.B_T 239 B

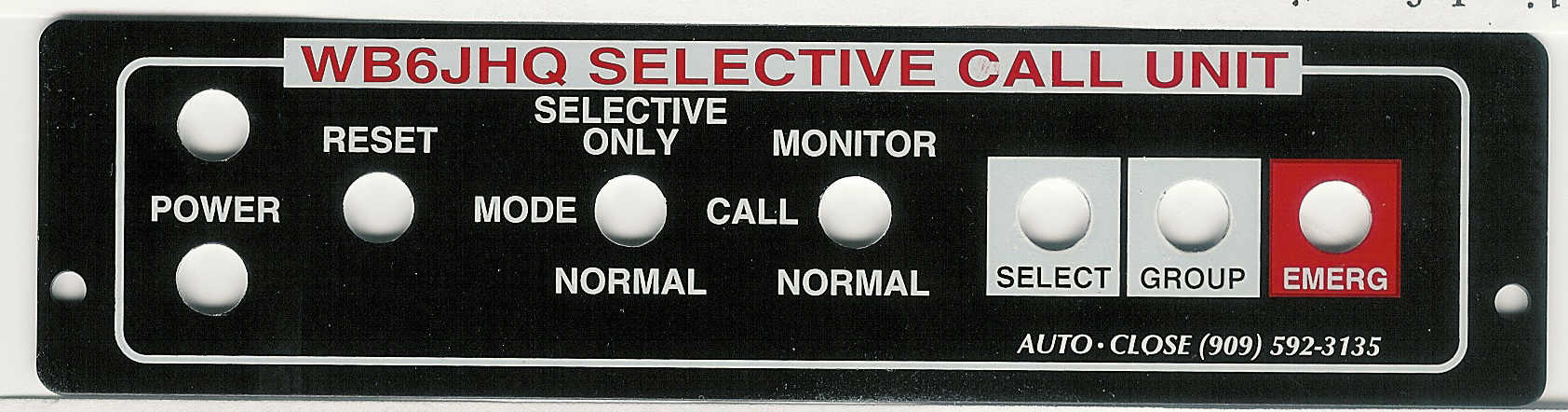

scan0013.jpg 111 kB
SCBOX1.ASM 46 kB

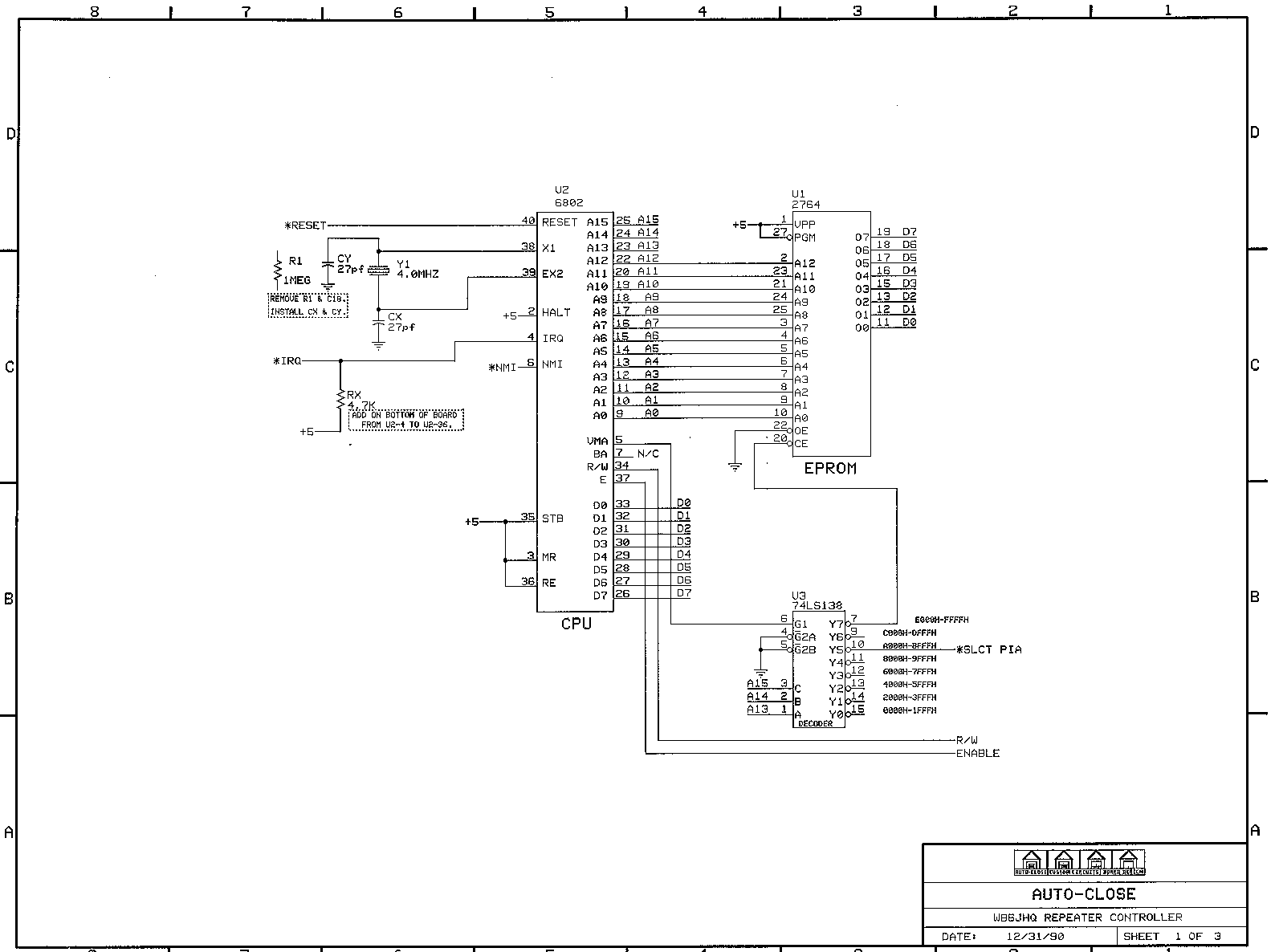

SCBox1.bmp 237 kB

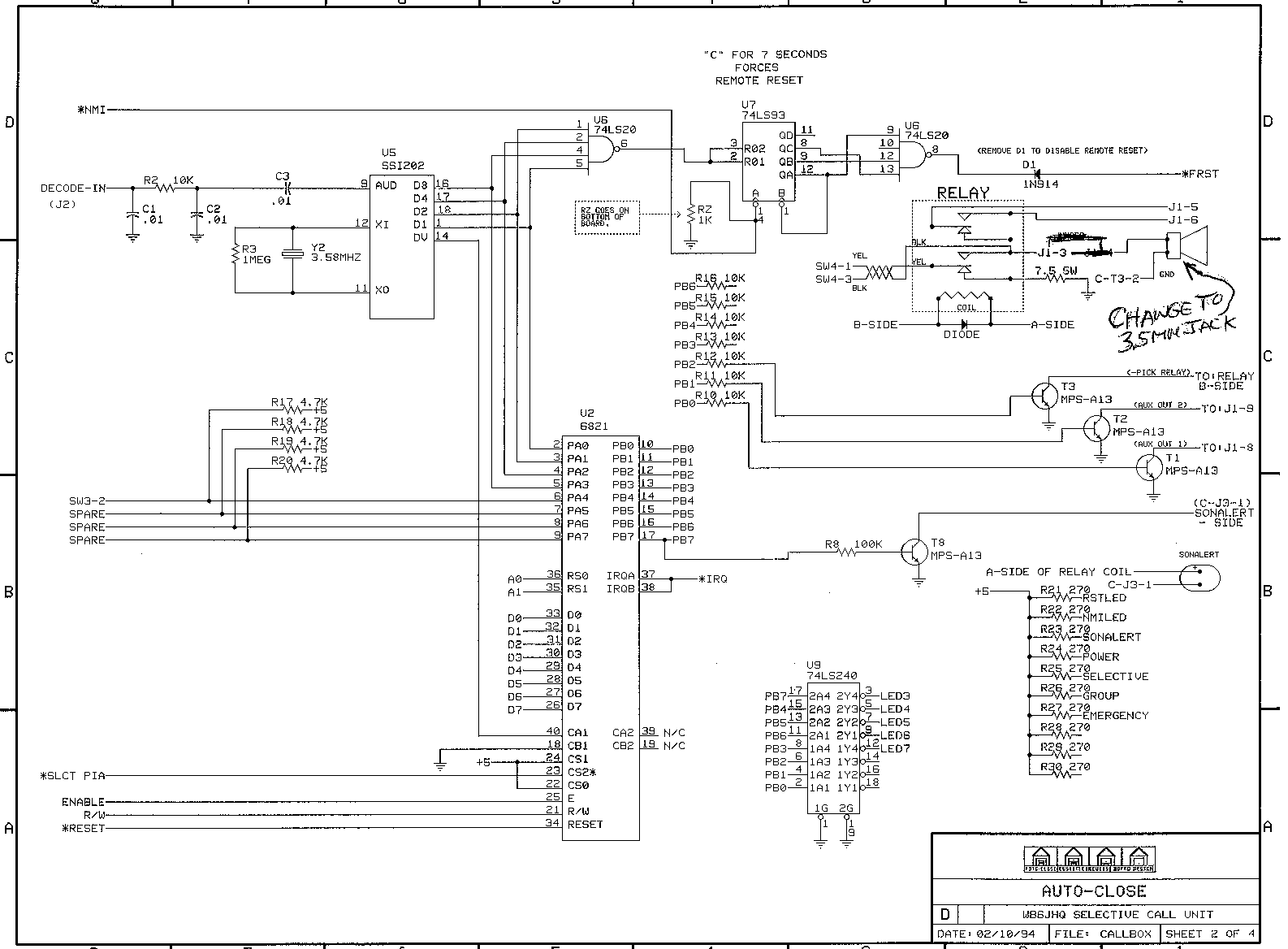

SCBox2.bmp 234 kB

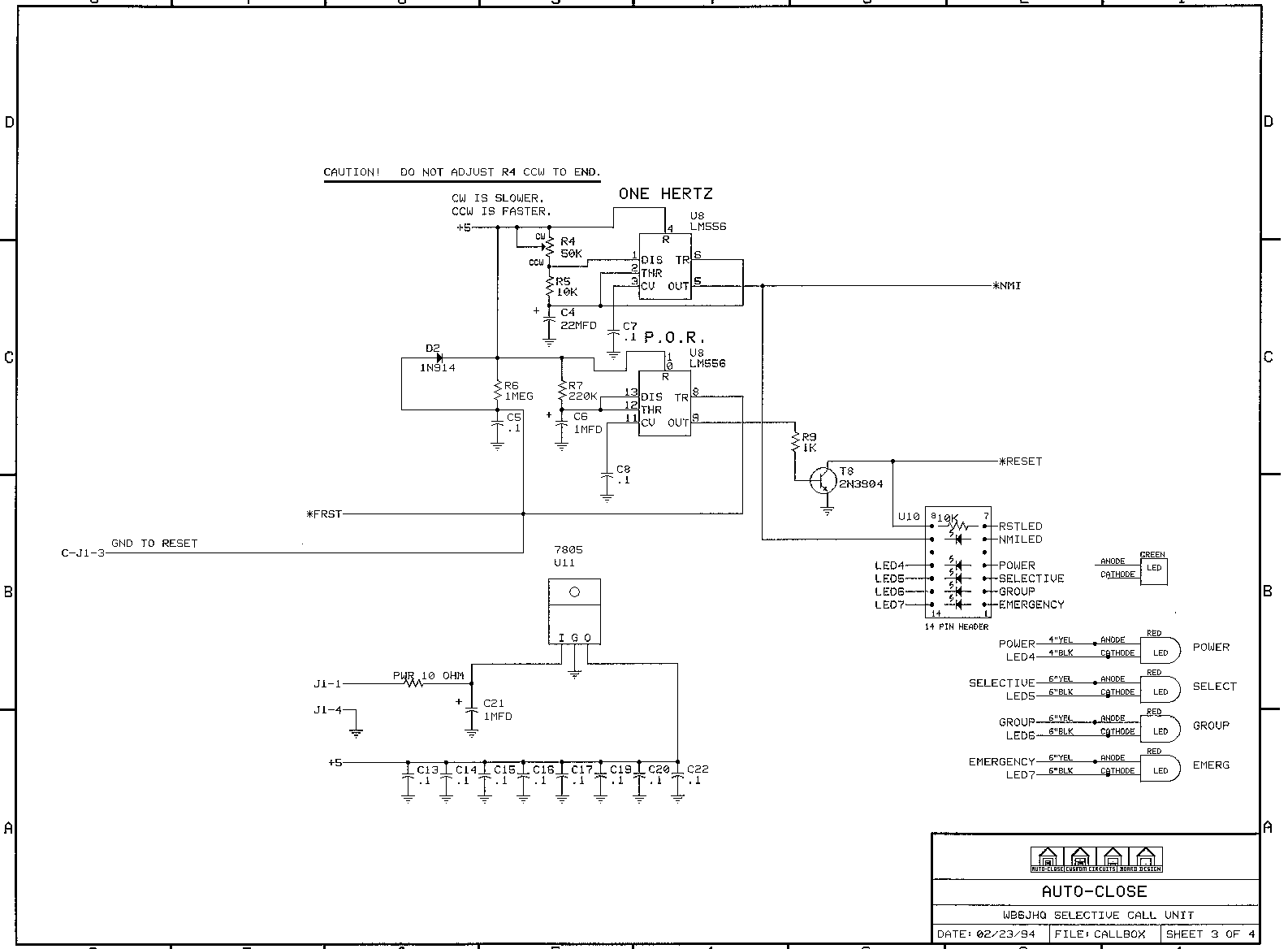

SCBox3.bmp 234 kB

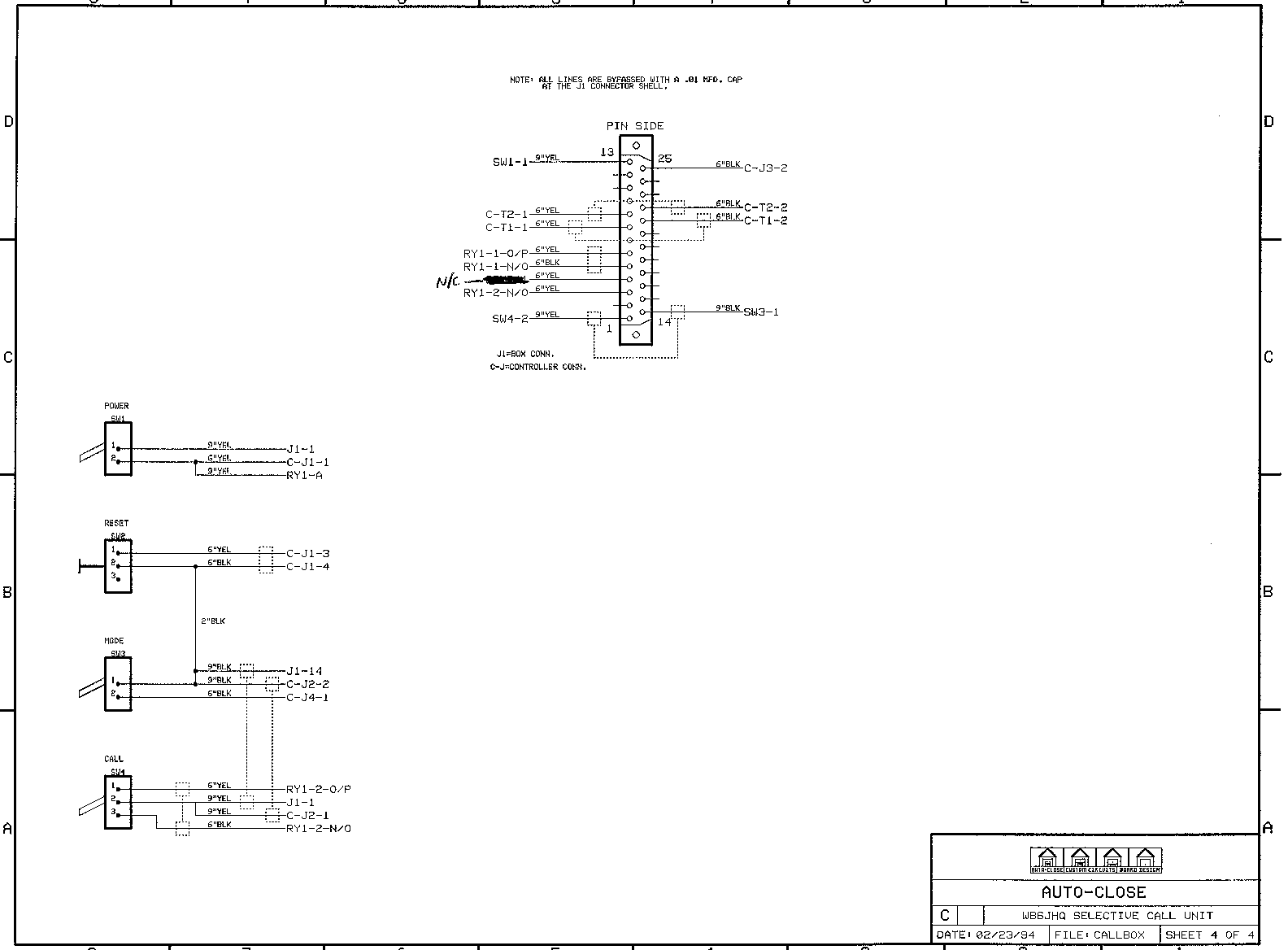

SCBox4.bmp 234 kB
Selective_Call_Box.txt 1.9 kB
