Variations in MaxTrac Receive Audio Level By Robert W. Meister WA1MIK

Background:

In June 2015 I received an email from Jeff WN3A asking why some MaxTracs had more audio coming out of the MIC connector's headset pin (pin 8) than others. This is a great spot to pick up a constant level, squelched, de-emphasized audio signal for signal-to-noise and quieting testing, as well as to feed a repeater controller. I had usually found around 300-400 mV there on the radios I had tested. Jeff said some radios had nearly 800 mV at that same point and he wondered why.

Divide and Conquer:

I fed a 1mV signal at an appropriate frequency using a 1,000 Hz tone at 3 kHz deviation into more than half a dozen MaxTrac radios and measured the detected audio coming in from the RF board. In all cases it was 22-25 mV, just as called for on the schematic. OK, the difference must be on the logic board.

Next I measured the output at the MIC jack pin 8. "LB" is the logic board number; prefix it with "HLN". Here are the audio levels I found. In the tables below, odd levels and resistor values are highlighted with red text.

Radio	LB	mV
800 5-pin	5172	292
VHFL 5-pin	5172	724
VHFH 5-pin	5173	469
UHF 5-pin	9123	728
UHF 16-pin	9313	635

I measured additional radios including a 900 MHz model (using half the deviation), but they were all quite similar in level. The only oddball was the 800 MHz radio with the 5172 logic board. Since I had two radios with the same logic board but different audio levels, I investigated just those two radios in more detail. I'm now going to refer to the 800 MHz radio with lower audio as the "low" radio and the low-band radio with higher audio as the "high" radio.

Where's the Gain?

I measured the outputs of the receiver's audio amplifiers and filters, which use three dual op-amps. I numbered these stages 1 through 6 starting at the right where the "Detected Audio" signal enters the logic board on pin 3 of the connector that comes from the RF board on the other side of the radio. You can enlarge each of the schematic snippets below by clicking on them.

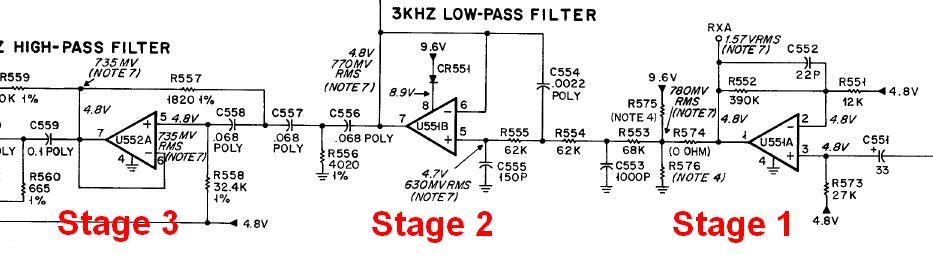

I begin with the MaxTrac's audio stages 1 through 3.

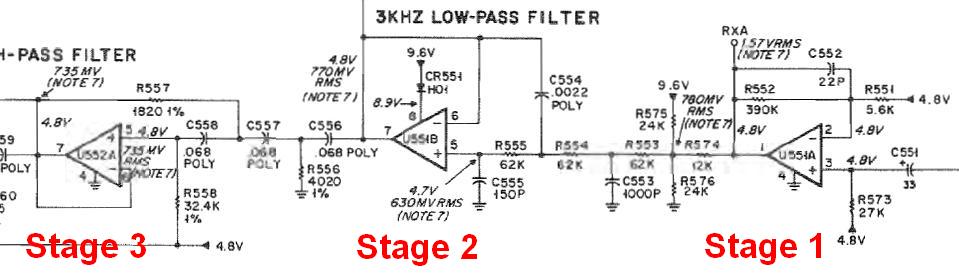

Here is the same circuitry from the Radius manual.

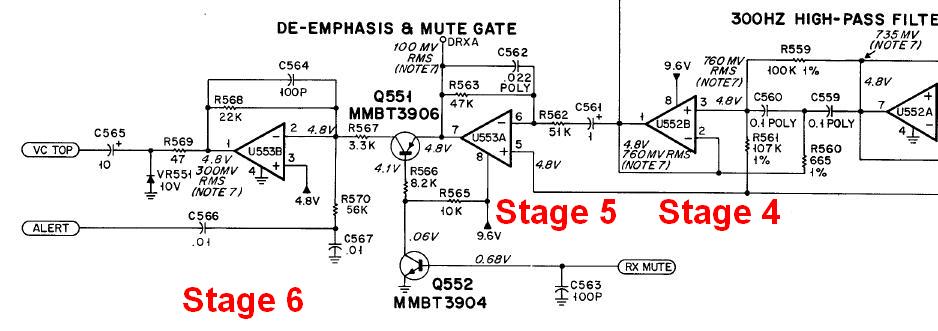

Now here's the rest of the MaxTrac's audio stages 4 through 6.

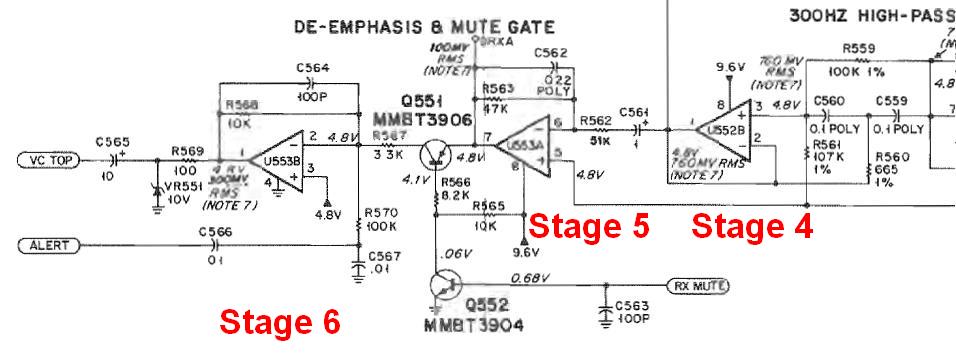

And finally the rest of the Radius audio stages 4 through 6.

I used the same input signal as above: 1,000 Hz tone at 3 kHz deviation. The important number is the one at the output of stage 6, as that feeds the volume control and the headset audio pin on the MIC jack. Here are the outputs of each stage along with what the schematic says they should be. All values are in millivolts AC.

Stage	IC & Pin	Low	High	Sch
1	U551-1	1556	820	780
2	U551-7	742	795	770
3	U552-7	702	762	735
4	U552-1	727	788	735
5	U551-7	101	110	100
6	U551-1	304	743	300

OK, so I see a big difference in the output of stage 1, however stages 2 through 5 are all nearly identical and match the values on the schematic. The output from stage 6 on the "low" radio matched what the schematic said it should be but this value was quite a bit lower than all the other radios I tested. I looked at the schematic and a quick calculation told me that stage 6 should have a gain of about 7-8, and that's what the "high" radio was giving me, so I think the schematic's value of 300 mV at the output of stage 6 is wrong.

Getting Down to the Component Level:

So I went to the next step: I pulled each logic board and, armed with the color X-ray view of the bottom of the board, I measured the resistor values around stages 1 and 6. Here's what I found:

Stage	R#	Low	High	Sch
1	551	5.6k	12k	12k
1	552	370k	388k	390k
1	553	62k	68k	68k
1	573	27k	27k	27k
1	574	12k	0	0
1	575	12k	N.I.	N.I.
1	576	12k	N.I.	N.I.
6	567	3.3k	3.3k	3.3k
6	568	10k	22k	22k
6	569	100	48	47
6	570	100k	56k	56k

Analysis and Conclusions:

I noticed several interesting things here. First, the "low" radio has a bunch of 12k resistors installed in stage 1 that the schematic says should either be zero or not installed. But the big difference is in the value of R568, a feedback resistor that controls the gain of stage 6. As Jamie on Mythbusters would say, "Well, there's your problem!" With a 10k resistor, the calculated gain of stage 6 would be about 3; with a 22k resistor, it would be 7-8. The gain of this stage on the "low" radio is less than half of the gain on the "high" radio and the voltage measurements show that to be true. The Radius Detailed Service manual has only one logic board - 5173 - whose parts values seem to match those in my 5172 board.

Motorola must have revised the parts values on the 5172 logic boards at one time. All of the schematics in the MaxTrac Detailed Service Manual have these same parts values.

Credits and Acknowledgements:

The MaxTrac schematics came from the Detailed Service Manual 6880102W84-O.
The Radius schematics came from the Detailed Service Manual 6880101W58-A.
