Interfacing a Kenwood TKR-820 Repeater and an S-Com 5K Repeater Controller Submitted by Jake Eckardt N3FU Turned into an article by Robert W. Meister WA1MIK |
I'm presenting this information to make it easier for anyone else who wants to connect these two units. This same connection information will also work for the TKR-720 VHF repeater.

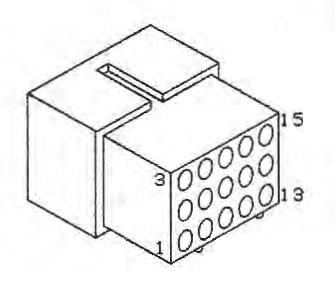

The 15-pin Molex accessory connector's pins are arranged according to the diagram below. The connector you need to acquire fits around the one in the TKR-820 and uses 0.062 inch male pins. Molex calls this a "plug". See this article for more information.
Here's the TKR-820's accessory connector pin assignment.
Pin | Signal Description |
---|---|
1 | External Hook Terminal |
2 | Line Input Ground |
3 | Direct Modulation Input |
4 | Direct Detection Output |
5 | Transmitter Line Input |
6 | Speaker Output Ground |
7 | +13.6V External Power Output |
8 | External PTT Input |
9 | Internal Speaker Input |
10 | Receiver Line Output |
11 | DC Ground |
12 | Speaker Output |
13 | Receiver Unsquelched Output |
14 | Unused |
15 | Unused |

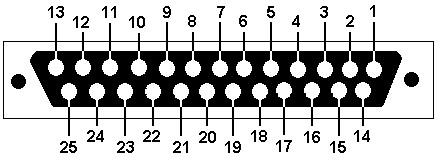

The S-Com 5K has a DB-25 female connector on it. You will need a male DB-25 connector to plug into it. Here's the pin numbering from the solder side of the connector.
Here's the S-Com 5K's DB-25 female connector pin assignment.
Pin | Signal Description |
---|---|
1 | Logic Input #1 |
2 | Logic Input #2 |
3 | Logic Input #3 |
4 | Repeater RX CTCSS Input |
5 | Control RX COR Input |
6 | Repeater RX COR Input |
7 | Logic Output #1 |
8 | Logic Output #2 |
9 | Logic Output #3 |
10 | Repeater TX PTT Output |
11 | Repeater TX Audio Output |
12 | Control RX Audio Input |
13 | Repeater RX Audio Input |
14-25 | All Ground |
Here's how to wire the cable that goes between the two units.
Pin | S-Com 5K Signal Name | TKR-820 Signal Name | Pin |
---|---|---|---|
4 | Repeater RX CTCSS Input | Receiver Unsquelched Output | 13 |
6 | Repeater RX COR Input | Receiver Unsquelched Output | 13 |
10 | Repeater TX PTT Output | External PTT Input | 8 |
11 | Repeater TX Audio Output | Transmitter Line (Audio) Input | 5 |
13 | Repeater RX Audio Input | Receiver Line (Audio) Output | 10 |
14 | Ground | DC Ground | 11 |
25 | Ground | Line Input Ground | 2 |
Additional TKR-820 (Molex) jumpers:
You can also power the S-Com 5K controller from the TKR-820 repeater by wiring the coaxial power plug to pin 7 (positive) and pin 11 (negative) of the Molex connector.
For those of you who like graphics, click here for a pictorial wiring diagram.
Acknowledgements and Credits:
Connector pin information came from the Kenwood and S-Com manuals.
Contact Information:
The author can be contacted at: jake1 [ at ] centurylink [ dot ] net.
