Tuning
Instructions for GE Custom MVP VHF Receiver
By Kevin Custer W3KKC
Preliminary checks and adjustments;
1. Connect signal generator to RX antenna jack on channel frequency.
2. Crystal Frequency = Operating frequency - 11.2 / 9 For low side
injection.
3. Crystal Frequency = Operating frequency + 11.2 / 9 For high side
injection.
4. Oscillator Measurements are made via black meter plug on IF Board,
connect negative lead of volt meter to ground.
5. Check for +10 volts DC on pin 5 of the black plug.
Step | Test Point | Tuning Control | Meter Reading | Procedure |
1 | Pin 3 (Mult-1) | C406 | Maximum | Tune C406 for Maximum meter reading |
2 | C411, C416, C306, C307 | See Procedure | Preset C411 and C416 to a position similar to C406, Preset C306 & C307 fully counter clockwise | |
3 | Pin 4 (Mult-2) | C411, C416, C406 | See Procedure | Tune C411 & C416 for Maximum meter reading, Retune C406, C411 and C416 for Maximum meter reading, Then dip C306 and tune C307. DO NOT READJUST C306 & C307 |
4 | Pin 1 (IF AMP) | C502, C301 through C305 | Maximum | Apply an on-frequency signal to the antenna jack, Keep signal below saturation. Tune C502 then C301 - C305 for maximum meter reading |
5 | Pin 1 (IF AMP) | C502, C301 through C307 | Maximum | Apply an on-frequency signal to the antenna jack, Retune C301 - C305 and C502 for best quieting sensitivity C306 & C307 may also be turned slightly (No more than 1/4 of a turn) |
6 | Pin 2 (FM Det) | L603 | 0.38 Volt | With no signal applied, adjust L603 for a reading of 0.38 Volt |
7 | P903-1(Vol/Sq HI) | L603, R608 | See Procedure | Apply 1000uV signal with 1kHz modulation at 3.0kHz deviation, Tune L603 for Maximum reading then adjust R608 for 1 volt AC RMS |

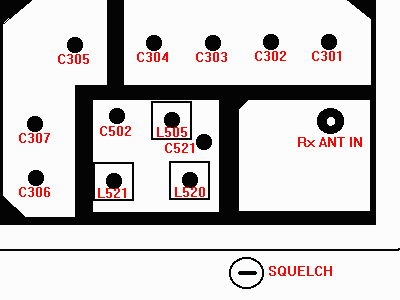

Tuning locations for GE Custom MVP VHF Reciver (bottom view)

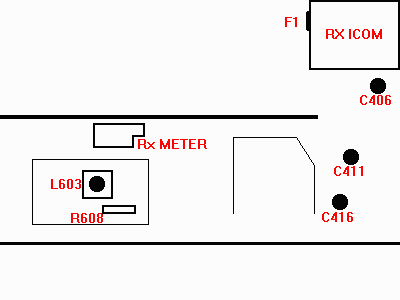

Tuning locations for the GE Custom MVP VHF Receiver (top view).
Original concept and pictures by Matt Krick K3MK
