Computer Automation Technology
Fort Lauderdale, Florida
CAT Note
14
Release Date: March 12, 2004 - Revised September 17, 2005
Interfacing a CAT controller to ILRP®

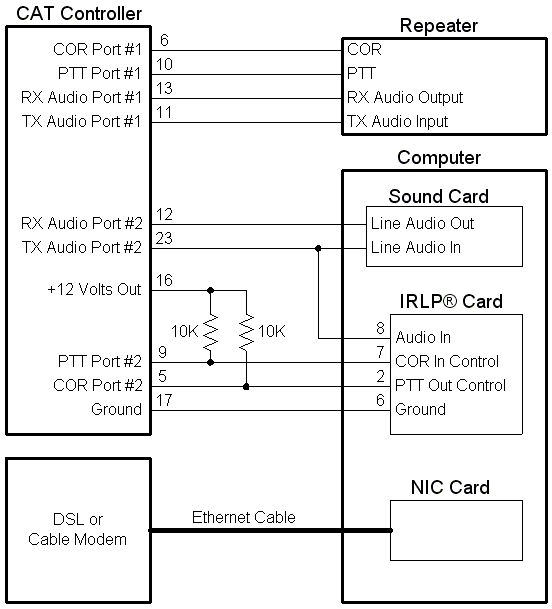

Interfacing a CAT controller for IRLP® operation.
This diagram is for IRLP Board Version 3.0

Notes:
1. Configure the CAT controller COR logic Dip Switch for low-going on port #2.
2. Make sure the IRLP board is set for low going cor input from the CAT.
