Sealed Lead Acid Battery Charger Mk II By Luke Enriquez VK3EM Last updated 19-Jan-2002

Note from Mike WA6ILQ: This repeater-builder web page is a recreation of a web page that at one time was on the Geocities server (which no longer exists as Geocities is out of business). I had done a "Save As" complete web page on my local hard drive before it evaporated, and recreated this page from that set of files. If VK3EM reades this please contact me. If anyone decides to make up a PCB let me know, I'll probably want a couple.

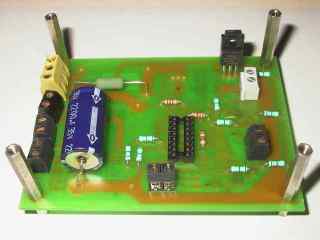

MkII Rev C PCB - Top Side

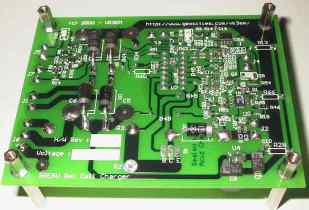

MkII Rev C PCB - Bottom Side

Introduction
This web page is designed to help people build a high performance sealed lead acid battery charger. The project documented on this page has been turned into a partial kit with a custom made PCB. Most of the information on this page refers to this kit. However, there is also enough information for you to build your own PCB (or use Vero/proto board) or change the design to suit your own purpose.

Special Update
19-Jan-2002 - PCBs and Kits are sold out. No plans are set to make any more.

Project Index

• Click here for the documentation for the VK3EM Sealed Lead Acid Battery Charger Mk II, Rev 1.3   (701 KB PDF).
  Contains 26 pages of Design Notes, Construction Notes, User Manual, Schematics, PCB Layouts, Bill of Materials, Silkscreen Overlays and Design Calculations).


• To see data sheets for the parts used in this project, click on the appropriate link below:
  • UC3906 Sealed Lead Acid Battery Charger Controller
  • TIP32C PNP Pass Transistor
  • 1N5404 Diode
  • BC817 NPN Transistor
  • BC857 PNP Transistor
  • LM358 Op Amp
  • LM393 Comparator
